    PSA Rigging Hardware

    Fall Protection Anchorage Point (Fall Arrest Eyebolt)
    • Persons
      Persons 1 to 2 persons
    • Rotation
      Rotation 360 degree
    • Material: Duplex stainless steel
    • Attachment type: Screw-in
    • Rotation angle: 360°
    • Pivot angle: 0°
    • Surface treatment (rings): Powder-coated
    • Working temperature range: -40℃~+200℃
    • Thread size: M12–M20
    • Custom thread: Metric/Unified National Coarse (UNC)/Unified National Fine (UNF)/pipe thread/lengthened/shortened
    • Rotates under load: No
    • Holding spring for suspension link: No
    • Working load limit: 1-2 persons (anchor point)
    • Safety factor: 4:1
    • Standard: Occupational Safety and Health Administration (OSHA) Standards: DIN EN 795 & TS16415;
      Loading standard: DIN EN365
    • Explosion protection: No
    • RAL color No.: Customizable
    • Identification label available: No
    Inspection and Standards
    • Fully traceable forged components and hexagonal bolts with certified reports
    • Compliant with occupational safety standards EN795 and TS16415
    • Declared load capacity of 1–2 persons per DIN EN365 standards
    • Bolts tested to withstand 22.2KN/person load and dynamic drop tests with 150kg loads (EU standard: 100kg)
    • 100% magnetic particle inspection ensures no cracks or defects
    Applications
    • Construction safety: Used as a fall arrest anchor point in high-altitude construction activities, including bridge construction and building maintenance.
    • Outdoor maintenance: Functions as a secure anchor for personnel during wind power maintenance and high-voltage power line repairs, ensuring fall protection for workers in challenging environments.

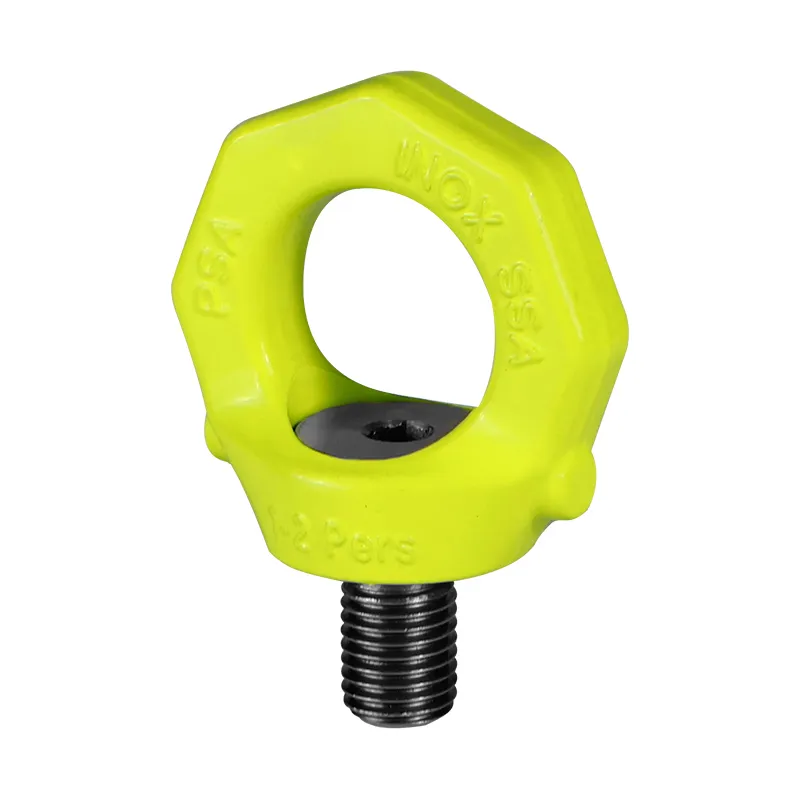

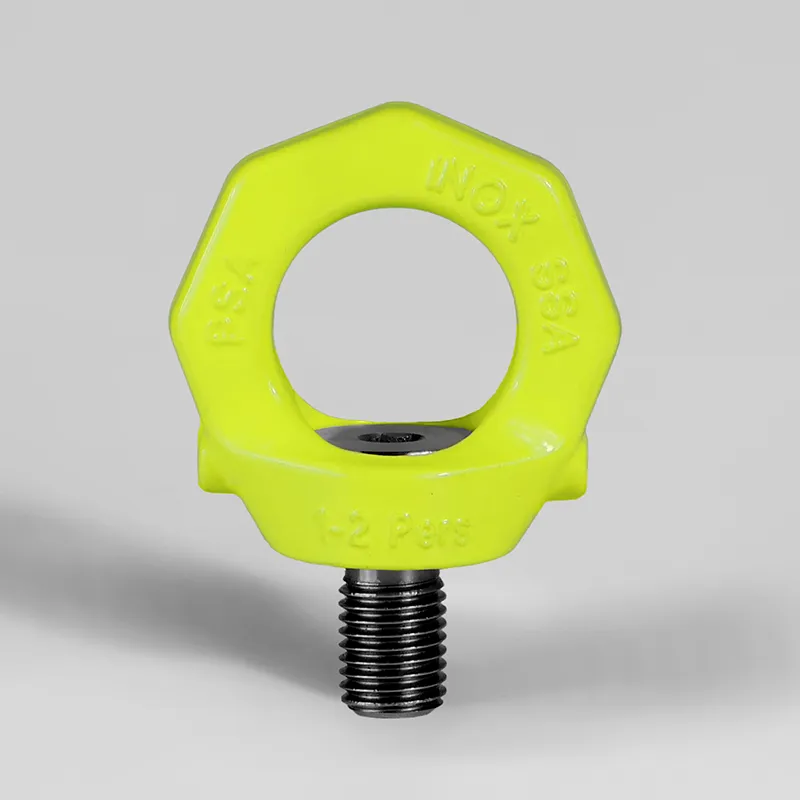

    The fall protection anchorage point is a personal safety device designed for high-altitude operations, ensuring secure attachment and fall prevention for up to two persons. This fall arrest eyebolt offers 360-degree rotation to automatically adjust to the direction of force, making it a reliable choice for demanding outdoor environments, including construction and aerial work.
    Fall Protection Anchorage Point (1-2 persons)
    Key Features
    • Functions as a fall arrest anchorage point for personal safety, compatible with safety harnesses in high-altitude operations
    • Long-term stability in outdoor environments, including marine and high-chloride conditions

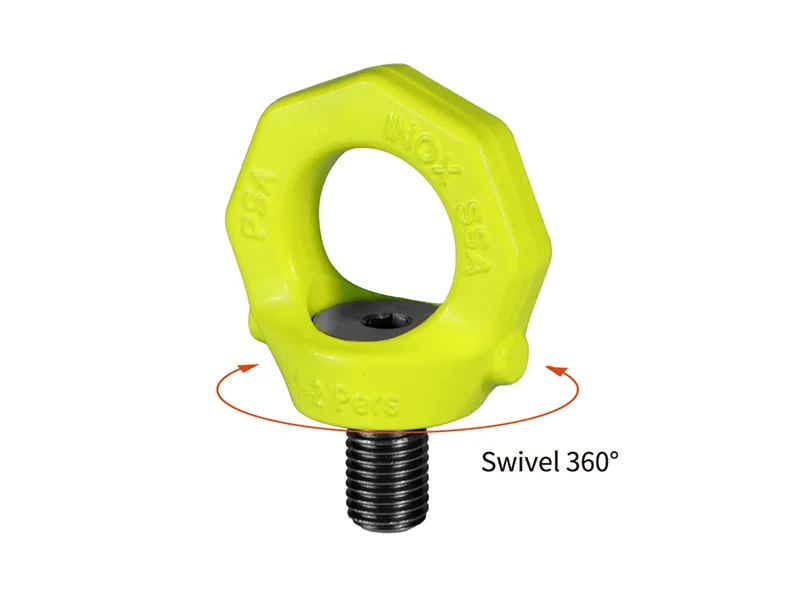

    • 360° rotation adjusts automatically to the force direction, enhancing safety during operations
    • Hexagonal socket bolt design for quick and easy installation
    • Available in M12–M20 sizes with customizable bolt lengths for deep or through holes
    • Clearly marked with a load capacity of 1–2 persons for standardized use
    • Manufactured from duplex stainless steel (DSS), offering excellent corrosion resistance and mechanical strength
    • Epoxy resin electrostatic powder-coated ring body for added durability and aesthetics
    • Each load-bearing component is marked with a batch number for traceability
    Specifications

    (Available in Metric Thread and UNC Thread)

    • Fall Protection Anchorage Point (1-2 persons)
    • Fall Protection Anchorage Point (1-2 persons)

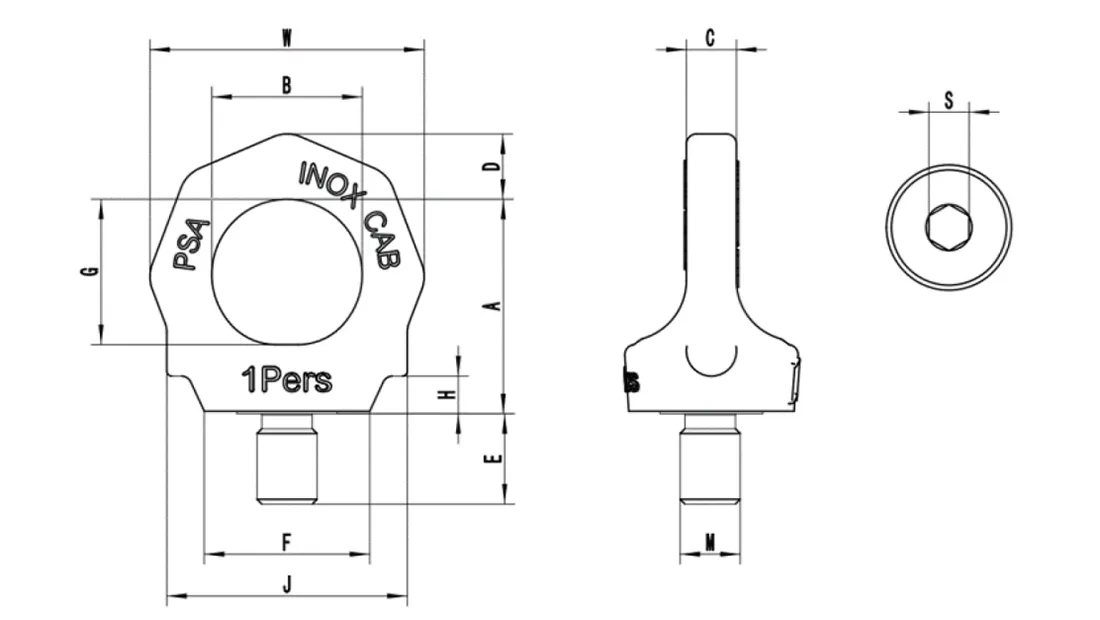

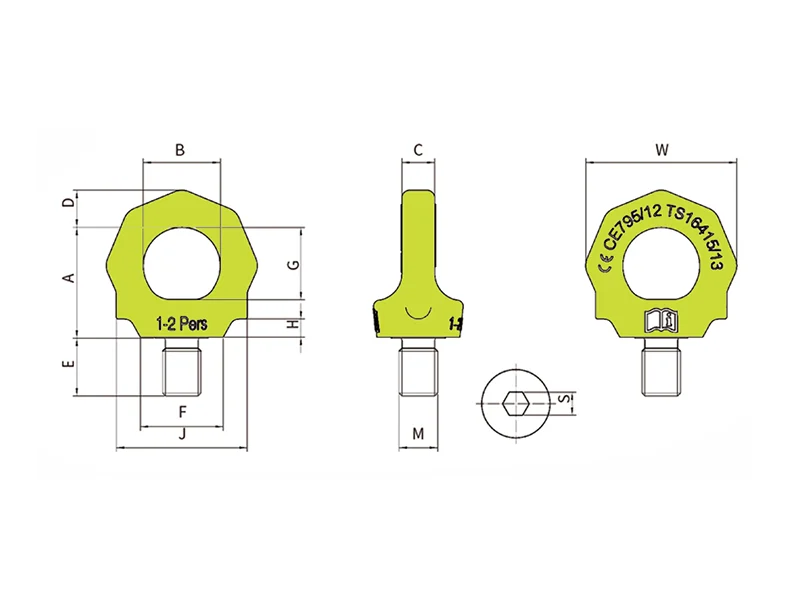

    Metric Thread Fall Protection Anchorage Point, PSA

    Item No. Thread M Persons Dimensions mm Torque (Nm) Weight (kg)
    A B C D E F G H J S W
    PSA INOX-M12 12×1.75 1 Person 43 30 10 13 18 33 29 7.0 48 8 55 10 0.20
    PSA INOX-M16 16×2.00 1-2 Persons 50 35 14 16 24 35 34 8.0 56 10 65 30 0.40
    PSA INOX-M20 20×2.50 1-2 Persons 57 40 17 19 30 43 37 9.5 64 12 78 70 0.60
    PSA INOX-M12 L-50 12×1.75 1 Person 43 30 10 13 50 33 29 7.0 48 8 55 10 0.22
    PSA INOX-M16 L-50 16×2.00 1-2 Persons 50 35 14 16 50 35 34 8.0 56 10 65 30 0.48
    PSA INOX-M16 L-120 16×2.00 1-2 Persons 50 35 14 16 120 35 34 8.0 56 10 65 30 0.56
    PSAINOX-M20 L-60 20×2.50 1-2 Persons 57 40 17 19 60 43 37 9.5 64 12 78 70 0.63

    * The length and thread of bolts can be made according to requirements;

    UNC Thread Fall Protection Anchorage Point, PSA

    Item No. Thread M Persons Working Load Limit (t) Torque (Nm) Weight (kg)
    A B C D E F G H J S W
    PSAINOX-1/2 1/2-13UNC-2A 1 Person 43 30 10 13 18 33 29 7 48 8 55 10 0.2
    PSAINOX-5/8 5/8-11UNC-2A 1-2 Persons 50 35 14 16 24 35 34 8 56 10 65 30 0.4
    PSA INOX-3/4 3/4-10UNC-2A 1-2 Persons 57 40 17 19 30 43 37 10 64 12 78 70 0.6

    * The length and thread of bolts can be made according to requirements;

    Instruction Manual Download
    • Customize
      CustomizeWe offer full customization based on customer requirements, including markings, colors, logos, bolt coating processes, and appearance. We can also design drawings tailored to specific needs.
    • Service
      ServiceBoth metric and UNC threaded hoist rings are available in stock and can be shipped within 1–3 days. For special threaded hoist rings, delivery can be arranged within 3–15 days (contact our service team for bulk order confirmation).
