BLT082 Rigging Hardware

Heavy Duty Lifting Point

Heavy Duty Lifting Point (0.5-9t)
  • Heavy Duty Lifting Point (0.5-9t)
  • Heavy Duty Lifting Point (0.5-9t)
  • Heavy Duty Lifting Point (0.5-9t)
  • Heavy Duty Lifting Point (0.5-9t)
  • Heavy Duty Lifting Point (0.5-9t)
    • Request a Quote
    BLT082 Rigging Hardware

    Heavy Duty Lifting Point
    • Working Load Limit
      Working Load Limit 0.5-9t

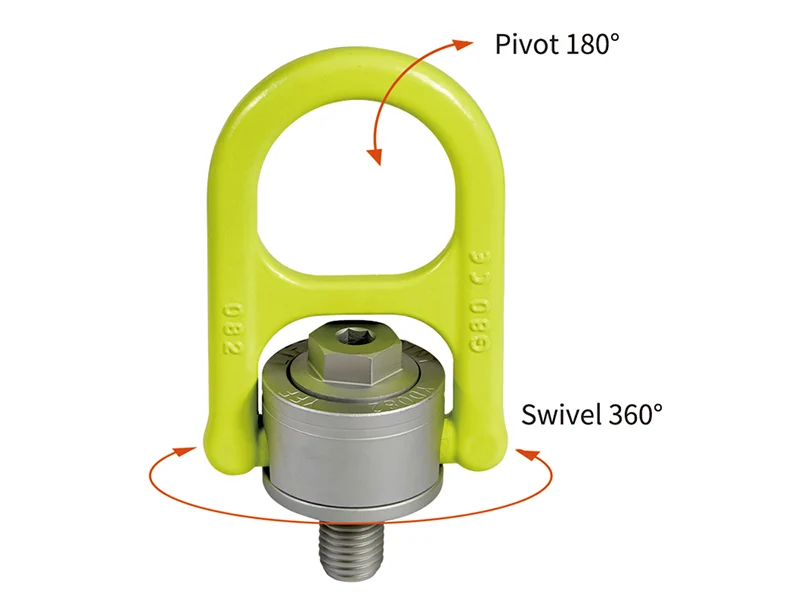

    • Rotation
      Rotation 360 degree
    • Pivot
      Pivot 180 degree
    • Material: High-strength chromium-molybdenum alloy steel
    • Attachment type: Screw-in
    • Rotation angle: 360°
    • Pivot angle: 180°
    • Surface treatment (rings): Powder-coated
    • Surface treatment (bolts): Dacromet
    • Working temperature range: -40℃~+200℃
    • Thread size: M8–M36
    • Bolt grade: 10.9
    • Custom thread: Metric/Unified National Coarse (UNC)/Unified National Fine (UNF)/pipe thread/lengthened/shortened
    • Rotates under load: No
    • Holding spring for suspension link: No
    • Working load limit: 0.5T-9T
    • Safety factor: 4:1
    • Standard: DIN EN 1677-1
    • Explosion protection: No
    • RAL color No.: Customizable
    • Identification label available: No
    Inspection and Standards
    • Passed 6g plug gauge inspection, ensuring compatibility with precision-threaded holes
    • Successfully completed 1.5x fatigue testing (20,000 cycles) and 2.5x rated load testing for reliability
    • Verified through magnetic particle inspection to confirm a crack-free structure
    • Manufactured to EN1677-1 standards, with certified test reports available upon request
    Applications
    • Oil & gas: Ideal for use in highly corrosive environments such as oil and gas drilling operations, commonly employed for lifting drilling equipment and transporting pipeline systems
    • Industrial plants: Frequently used for lifting large industrial machinery such as compressors and boilers
    • Transportation: Suitable for transporting heavy industrial equipment, including transformers and containers

    This heavy duty lifting point offers a working load limit of 0.5t to 9t, making it an excellent choice for operations where precision and efficiency are critical. It is optimized for applications requiring lighter equipment, ensuring easy handling without compromising on strength or reliability. Its one-piece forged construction eliminates weld points for enhanced safety, while the corrosion-resistant coating and durable design allows precise lifting tasks in demanding environments, including marine and industrial settings.
    Heavy Duty Lifting Point (0.5-9t)
    Key Features
    • Made from high-strength chromium-molybdenum alloy steel, quenching and tempering processes enhance its durability and tensile strength
    • Features a one-piece forged design without weld points, making it lighter in weight while maintaining the same load-bearing capacity
    • Equipped with a dual hexagon bolt design at the top, enabling quick and convenient installation
    • Advanced anti-corrosion treatments on bolts make it suitable for standard operations as well as high-chloride and marine environments
    • Available in thread sizes ranging from M8 to M36, with custom options such as extended or shortened threads, coarse or fine threads, and both metric and UNC specifications
    • Provides a working load limit of 0.5-9t, with a 4:1 safety factor and 100% non-destructive inspection
    • Each load-bearing component is stamped with a unique production batch number, ensuring easy traceability
    • Features an epoxy resin electrostatic powder coating for the ring body and Dacromet rust-proof treatment for the bolt
    Specifications

    (Available in Metric Thread and UNC Thread)

    • Heavy Duty Lifting Point (0.5-9t)
    • Heavy Duty Lifting Point (0.5-9t)

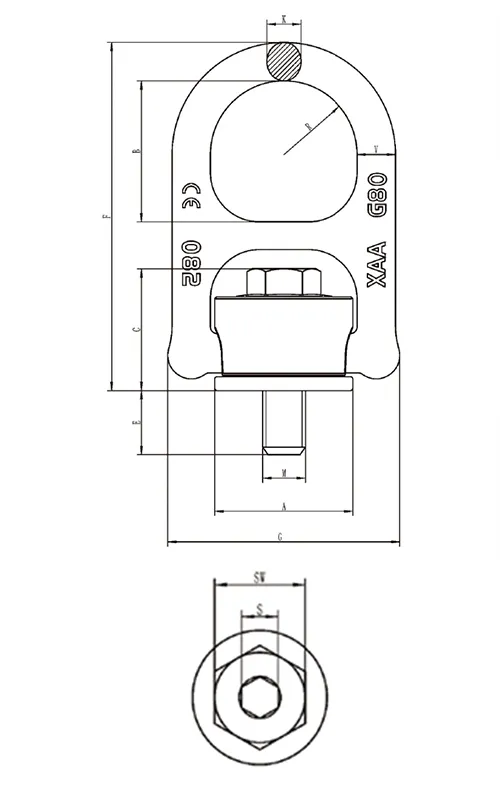

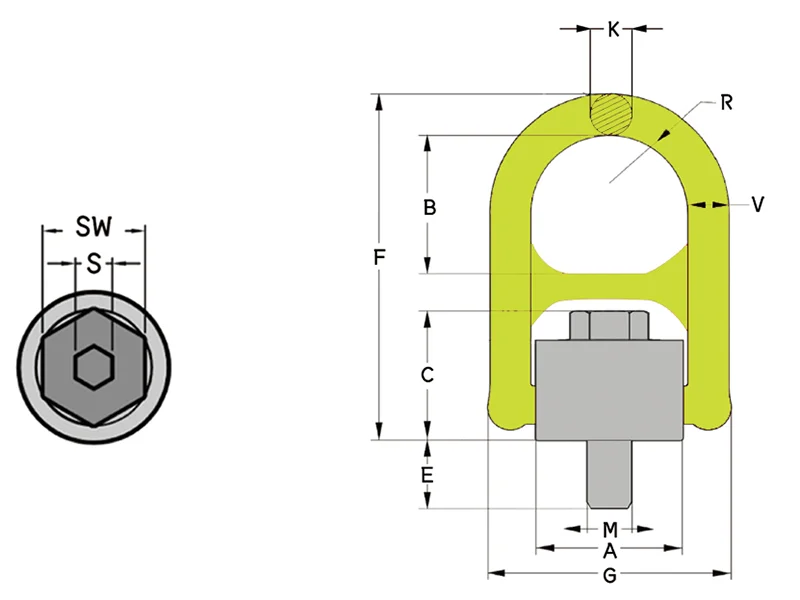

    Item No. Working Load Limit (t) Thread M Dimensions (mm) Torque (Nm) Weight (kg)
    E A B C F G V R S SW K
    BLT082-M8 0.5 8×1.25 12 33 35 30.0 86 56 10 17.5 6 13 10 10-40 0.3
    BLT082-M10 0.7 10×1.50 15 33 35 30.0 86 56 10 17.5 6 13 10 10-40 0.3
    BLT082-M12 1.0 12×1.75 20 33 35 30.0 86 56 10 17.5 6 13 10 15-40 0.3
    BLT082-M14 1.5 14×2.00 21 50 55 46.0 131 85 14 27.0 8 18 13 30-100 1.0
    BLT082-M16 2.0 16×2.00 24 50 55 46.0 131 85 14 27.0 8 18 13 45-130 1.0
    BLT082-M18 2.5 18×2.50 26 65 66 57.0 163 109 18 34.5 10 24 16 100-170 2.0
    BLT082-M20 3.0 20×2.50 30 65 66 57.0 163 109 18 34.5 10 24 16 100-170 2.0
    BLT082-M24 5.0 24×3.00 36 65 66 57.0 163 109 18 34.5 10 24 16 190-280 2.0
    BLT082-M27 5.6 27×3.00 38 87 80 82.5 219 150 27 45.5 12 30 25 250-500 5.5
    BLT082-M30 7.8 30×3.50 48 87 80 82.5 219 150 27 45.5 12 30 25 270-600 5.6
    BLT082-M36 9.0 36×4.00 54 87 80 82.5 219 150 27 45.5 12 30 25 270-600 5.7

    * Safety factor of 4:1;
    * The length and thread of bolts can be made according to requirements;

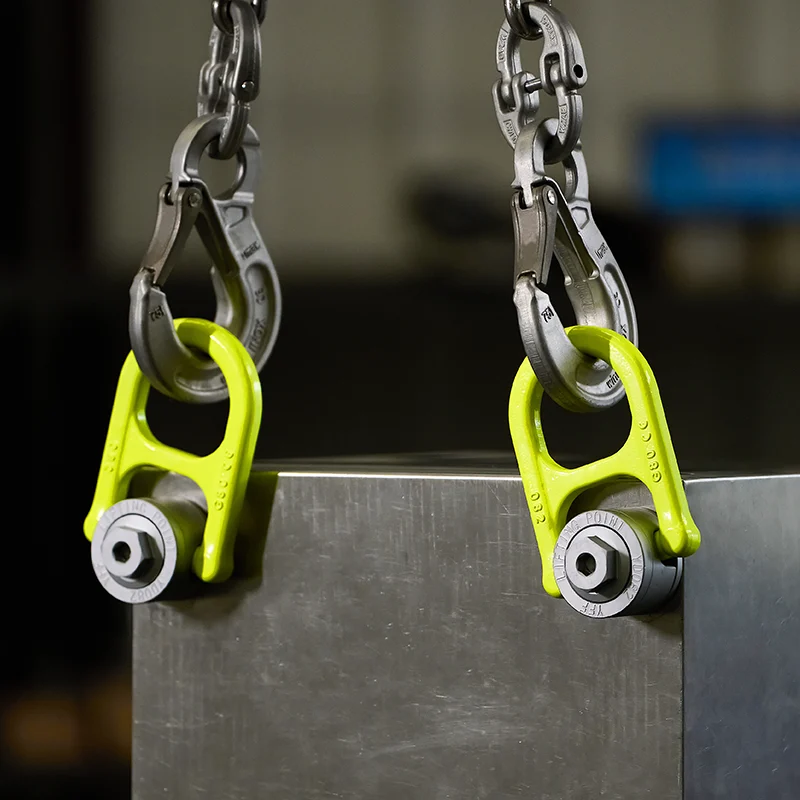

    Working Load Applications

    Lifting Method Working Load Applications Working Load Applications Working Load Applications Working Load Applications Working Load Applications Working Load Applications Working Load Applications Working Load Applications
    Number of Sling Legs 1 2 1 2 2 2 3-4 3-4
    Lifting Angle 0° 0° 90° 90° 0-45° 45-60° Asymmetry 0-45° 45-60° Asymmetry
    Item No. Thread M Working Load Limit (t)
    BLT082-M8 8 0.8 1.6 0.5 1.0 0.70 0.5 0.50 1.05 0.75 0.5
    BLT082-M10 10 1.2 2.4 0.7 1.4 0.98 0.7 0.70 1.47 1.05 0.7
    BLT082-M12 12 2.0 4.0 1.0 2.0 1.40 1.0 1.00 2.10 1.50 1.0
    BLT082-M14 14 2.4 4.8 1.5 3.0 2.10 1.5 1.50 3.15 2.25 1.5
    BLT082-M16 16 3.2 6.4 2.0 4.0 2.80 2.0 2.00 4.20 3.00 2.0
    BLT082-M18 18 5.0 10.0 2.5 5.0 3.50 2.5 2.50 5.25 3.75 2.5
    BLT082-M20 20 5.6 11.2 3.0 6.0 4.20 3.0 3.00 6.30 4.50 3.0
    BLT082-M24 24 9.2 18.4 5.0 10.0 7.00 5.0 5.00 10.50 7.50 5.0
    BLT082-M27 27 9.5 19.0 5.6 11.2 7.84 5.6 5.60 11.76 8.40 5.6
    BLT082-M30 30 12.0 24.0 7.8 15.6 10.92 7.8 7.80 16.38 11.70 7.8
    BLT082-M36 36 12.5 25.0 9.0 18.0 12.60 9.0 9.00 18.90 13.50 9.0

    Item No. Working Load Limit (t) Thread Dimensions (mm) Torque (Nm) Weight (kg)
    M TPI E A B C F G V R S SW K
    BLT082-1/2 0.80 1/2 13.0 20 33 35 30.0 86 56 10 17.5 6 13 10 15-40 0.3
    BLT082-5/8 1.60 5/8 11.0 24 50 55 46.0 131 85 14 27.0 8 18 13 45-130 1.0
    BLT082-3/4 2.40 3/4 10.0 30 50 55 46.0 131 85 14 27.0 8 18 13 45-130 1.0
    BLT082-7/8 3.00 7/8 9.0 36 65 66 57.0 163 109 18 34.5 10 24 16 100-170 2.0
    BLT082-1 4.00 1 8.0 36 65 66 57.0 163 109 18 34.5 10 24 16 190-280 2.0
    BLT082-1-1/4 6.25 1-1/4 7.0 48 87 80 82.5 219 150 27 45.5 12 30 25 270-600 5.6

    * Safety factor of 4:1;
    * The length and thread of bolts can be made according to requirements;

    Working Load Applications

    Lifting Method Working Load Applications Working Load Applications Working Load Applications Working Load Applications Working Load Applications Working Load Applications Working Load Applications Working Load Applications
    Number of Sling Legs 1 2 1 2 2 2 3-4 3-4
    Lifting Angle 0° 0° 90° 90° 0-45° 45-60° Asymmetry 0-45° 45-60° Asymmetry
    Item No. Thread M Working Load Limit (t)
    BLT082-1/2 1/2 1.6 3.2 0.80 1.6 1.12 0.80 0.80 1.68 1.200 0.80
    BLT082-5/8 5/8 2.6 5.2 1.60 3.2 2.24 1.60 1.60 3.36 2.400 1.60
    BLT082-3/4 3/4 4.0 8.0 2.40 4.8 3.36 2.40 2.40 5.04 3.600 2.40
    BLT082-7/8 7/8 4.5 9.0 3.00 6.0 4.20 3.00 3.00 6.30 4.500 3.00
    BLT082-1 1 7.4 14.8 4.00 8.0 5.60 4.00 4.00 8.40 6.000 4.00
    BLT082-1-1/4 1-1/4 9.6 19.2 6.25 12.5 8.75 6.25 6.25 13.13 9.375 6.25
    Instruction Manual Download
    • Customize
      CustomizeWe offer full customization based on customer requirements, including markings, colors, logos, bolt coating processes, and appearance. We can also design drawings tailored to specific needs.
    • Service
      ServiceBoth metric and UNC threaded hoist rings are available in stock and can be shipped within 1–3 days. For special threaded hoist rings, delivery can be arranged within 3–15 days (contact our service team for bulk order confirmation).
    Want to learn more about our products?
    Email: info@mainlywell.com
    Tel.: +86-15122032926
    Get in Touch

    Always inspect the swivel hoist ring to ensure it is in good condition and that the threaded hole is clean and free of debris before use. During installation, use the proper tool to screw it in securely. Finally, make sure the hoist ring base is firmly tightened to the load surface, with no gaps or loose torque.

    In addition to black oxide, we also provide Dacromet coating as a standard option. Depending on your working environment, additional options such as chrome plating, galvanization, or zinc infiltration are available to enhance durability and corrosion resistance.

    Hoist rings must be inspected by a professional safety officer before and after each use, and at least once a year by qualified personnel. During the inspection, check for severe corrosion, cracks, fractures, or deformation in the screw and welded components. Confirm that all moving components (such as rotation and flip mechanisms) function smoothly and look for signs of heat damage or excessive wear. In case of any doubt about the safety condition of the hoist ring, stop using it immediately and report the issue to your supervisor.

    We do not recommend placing a washer between the hoist ring and the load. If it is unavoidable, please provide detailed load dimensions so our technical team can assess the load impact and recommend the safest lifting solution.
