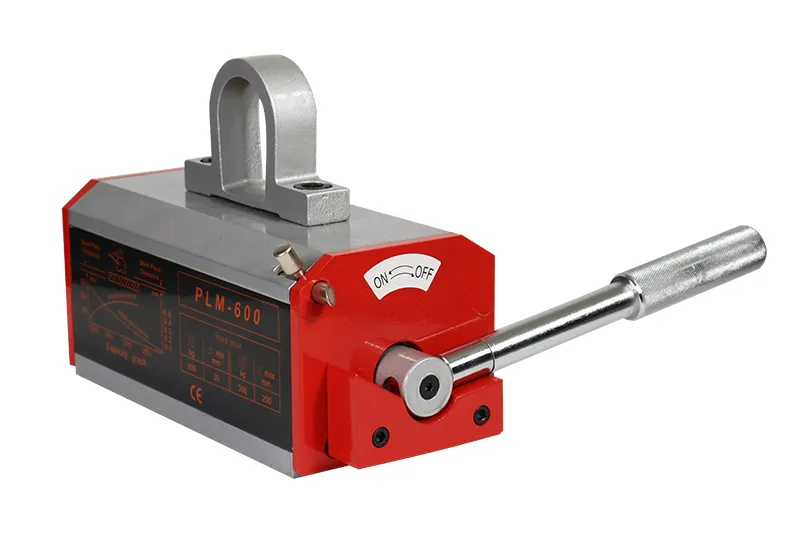

    Permanent Lifting Magnet with Sealed Casing

    This permanent lifting magnet is designed to address common challenges faced by standard lifting magnets. Its upgraded sealed casing prevents the accumulation of dust and iron filings, ensuring long-term performance and reduced maintenance needs. With a maximum 3.5x safety factor, this lifting magnet is widely trusted for its durability, efficiency, and safety in demanding industrial applications.

    Applications
    • Lifting and handling steel plates, iron blocks, cylindrical magnetic materials, smooth mechanical components, and various molds
    • Industries such as mechanical manufacturing, automotive production, shipbuilding, dock operations, transportation, and construction
    Request a Quote
    Permanent Lifting Magnet with Sealed Casing
    Key Features
    • Enhanced sealed casing for longer service life and higher safety

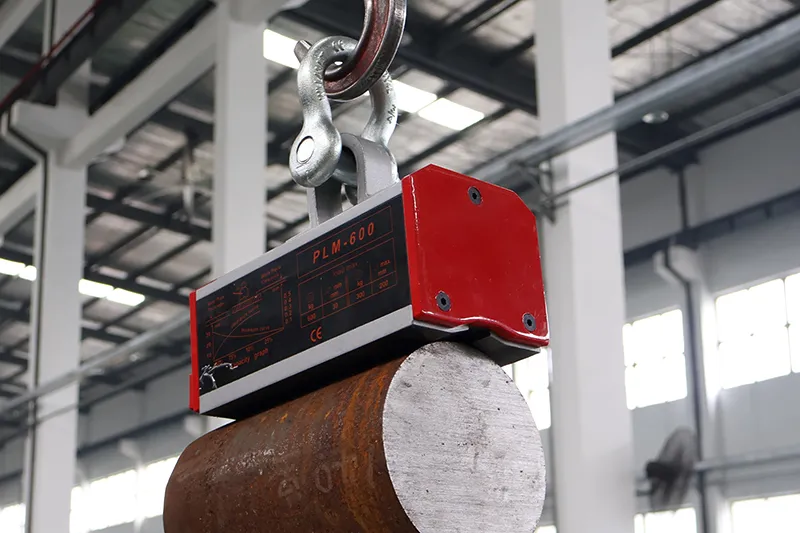

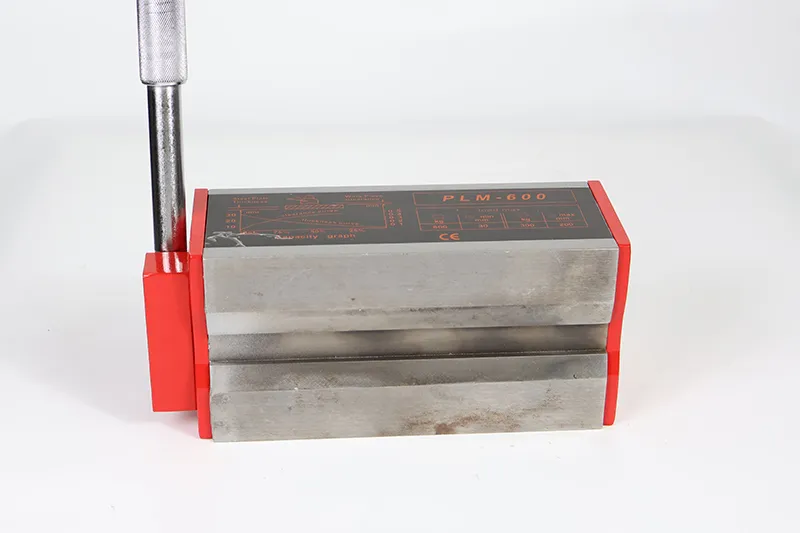

    • V-shaped lifting surface designed for securely lifting round steel and steel plates
    • Constructed with Nd-Fe-B (neodymium-iron-boron) magnetic material for powerful lifting capability
    • Label materials available in stainless steel or aluminum for durability
    • Working load limit (WLL) of 0.1 to 2 tons
    • Maximum safety factor: 3.5x
    • Certified with CE standards
    • Customizable color options available in red, yellow, or as per customer requirements
    • 100% static load factory testing ensures reliability
    Specifications
    Heavy Duty Flange Lifting Point
    Heavy Duty Flange Lifting Point

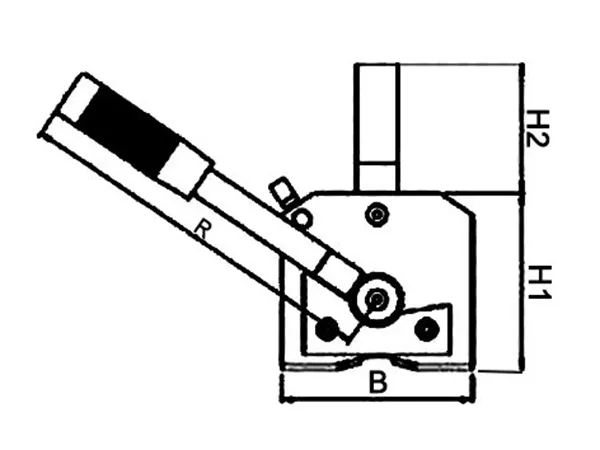

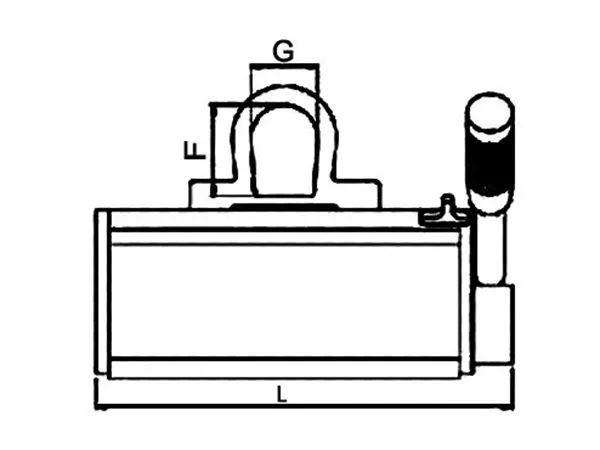

    Model Rated Lifting Capacity (kg) Max. Pull-Off Strength (kg) L (mm) B (mm) H1 (mm) H2 (mm) R (mm) F (mm) G (mm) Unit Weight (kg)
    PML3-100 100 350 137 62 66 45 120 32 21 4
    PML3-300 300 1050 199 90 95 68 175 50 38 11
    PML3-600 600 2100 263 115 107 78 225 58 42 22
    PML3-1000 1000 3500 303 150 140 88 266 64 50 42
    PML3-1500 1500 5250 348 166 156 102 336 76 56 64
    PML3-2000 2000 7000 394 175 170 102 343 76 56 80

    Notes:

    • Permanent lifting magnets are exclusively designed for vertical lifting applications.
    • For steel plates exceeding 3 meters in length, multiple magnets should be used together to ensure safety and stability.
    • Not recommended for steel plates thinner than 15 mm, as performance diminishes with reduced thickness.
    • Lifting capacity is 30% of stated parameters for cylindrical steel. For detailed specifications, contact our service team.
    • The magnet performs best with thicker steel plates.

    Provide details about the material for your lifting operation, and our service team will recommend the most suitable lifting magnet for your requirements. Spare parts like handles and bearings are available separately upon request. contact us for further assistance.
