    Double Circuit Permanent Lifting Magnet

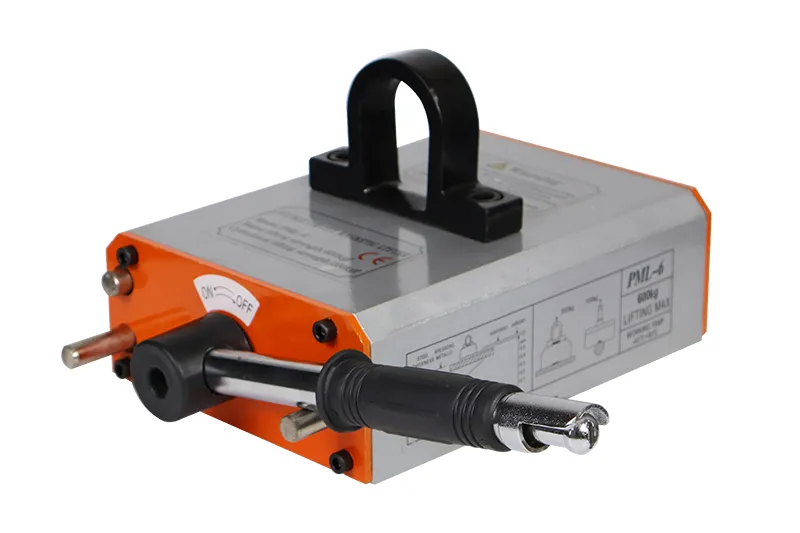

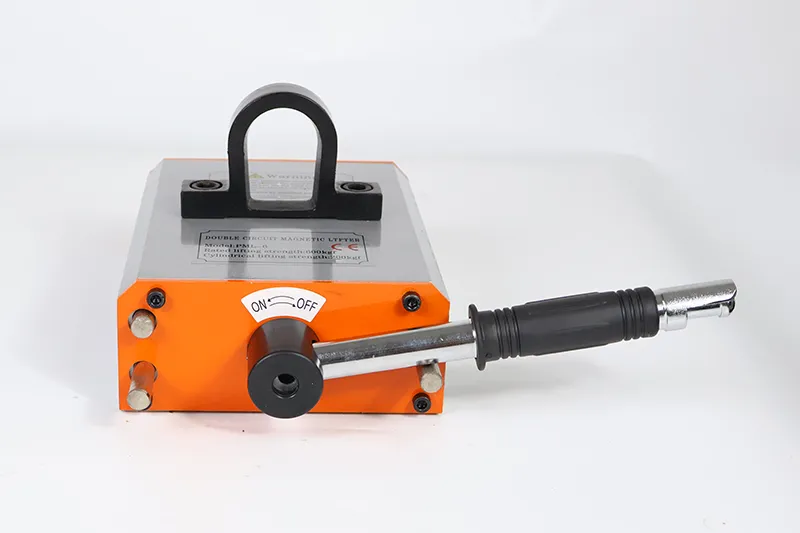

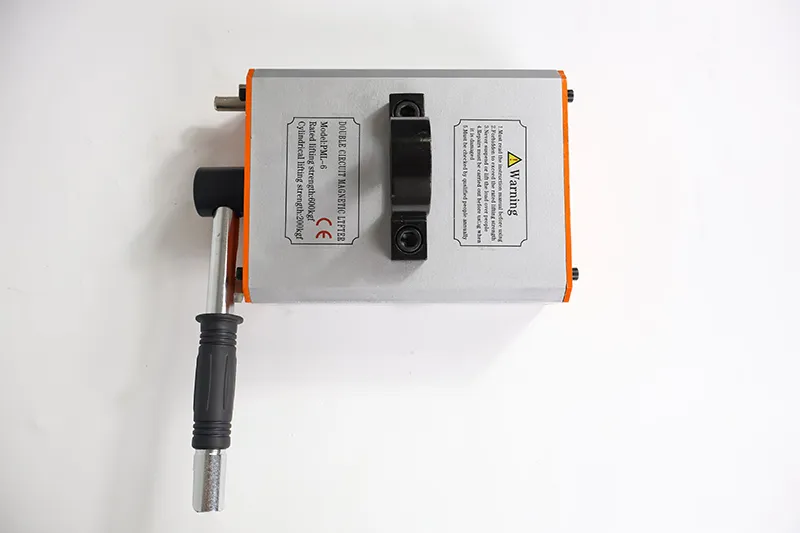

    The double circuit permanent lifting magnet is designed to enhance performance when handling thin steel plates (5–15mm), offering greater efficiency and reduced operational effort compared to single-circuit magnets. With a secure handle switch equipped with a safety button and no external power requirements, it ensures ease of use and safety. This versatile permanent magnetic lifter is ideal for lifting and transporting steel plates, ferromagnetic materials, cylindrical workpieces, and molds, making it indispensable across industries such as mechanical manufacturing, automotive production, shipbuilding, port operations, and construction.

    Request a Quote
    Double Circuit Permanent Lifting Magnet
    Key Features

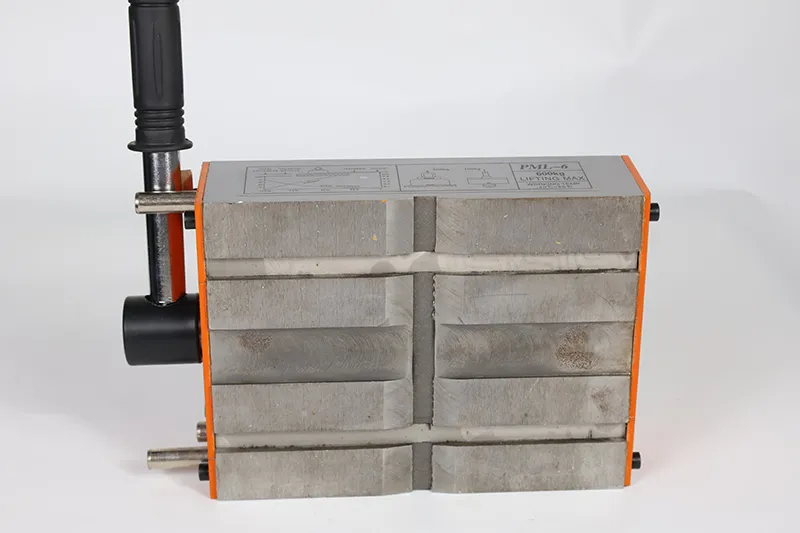

    • Dual "V" groove design improves stability and efficiency, especially for steel plates 5–15mm thick, requiring 30–40% less handle effort than single-circuit magnets
    • High-performance Nd-Fe-B magnetic material ensures compact size and strong lifting capability
    • Stainless steel/aluminum label construction enhances durability
    • Working load limit (WLL) of 0.3–2 tons
    • 3:1 safety factor with 100% factory static load testing
    • CE certified for compliance with international safety standards
    • Available in red, yellow, and other customizable options for colors
    Specifications
    Heavy Duty Flange Lifting Point
    Heavy Duty Flange Lifting Point

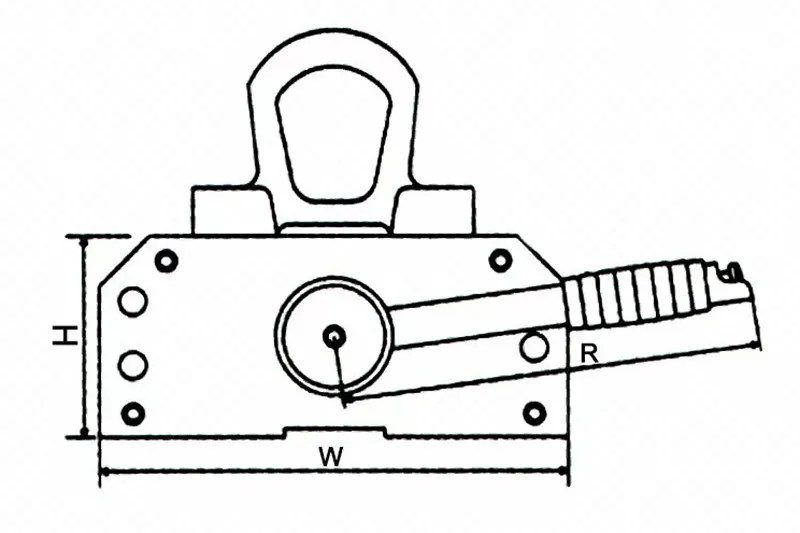

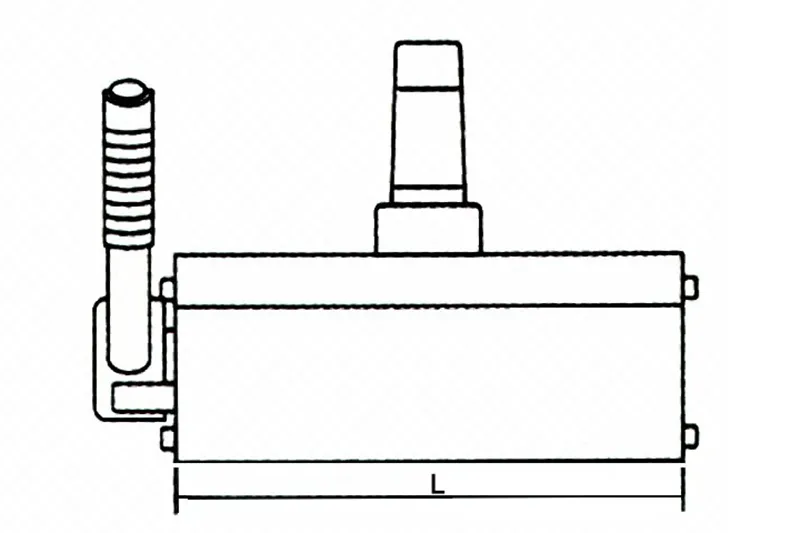

    MODE Rated Lifting Capacity (kg) Maximum pull-off strength (kg) L (mm) W (mm) H (mm) R (mm) Unit Weight (kg)
    PML4-300 300 900 163 133 60 203 9.5
    PML4-600 600 1800 234 162 74 267 21
    PML4-1000 1000 3000 302 190 87 306 38
    PML4-2000 2000 6000 441 132 107 500 77

    Notes:

    • Designed exclusively for vertical lifting applications.
    • For steel plates over 3 meters in length, it is recommended to use multiple magnets in combination.
    • Not suitable for lifting steel plates less than 5mm thick.

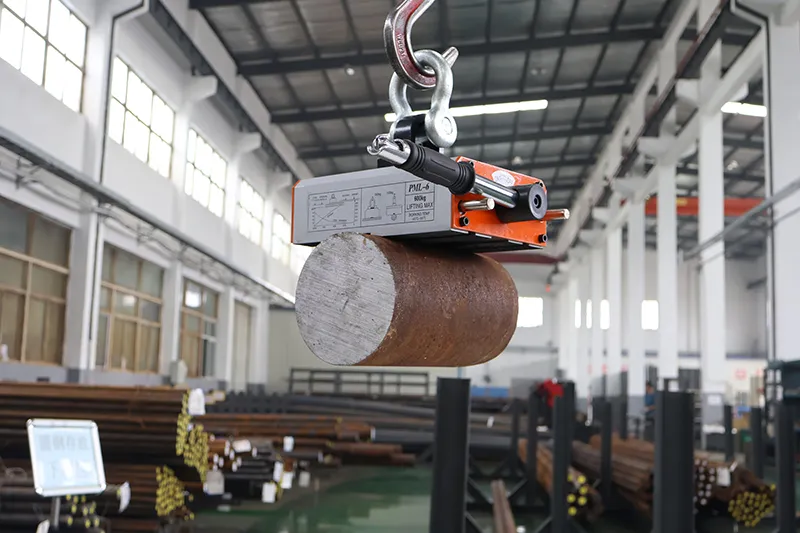

    • When lifting cylindrical steel, the load-bearing capacity is only 30% of the rated parameter. Contact us for detailed specifications.

    The performance of the lifting magnet is maximized with thicker steel plates. Please share the dimensions of the materials for your lifting operation, and our service team will recommend the most suitable lifting magnet for your requirements. Additionally, we provide separate handles and bearings as replacement parts for your convenience. For further assistance, feel free to contact us.
