    BLT086-089 Rigging Hardware

    Bearing Swivel

    Wire rope anti-rotation connector

    • Working Load Limit
      Working Load Limit 0.75-60t
    • Rotation
      Rotation 360 degree
    • Material: High-strength chromium-molybdenum alloy steel
    • Rotation angle: 360°
    • Surface treatment: Powder-coated
    • Working temperature range: -40℃~+200℃
    • Holding spring for suspension link: No
    • Working load limit: 0.75T-60T
    • Safety factor: 4:1
    • Standard: DIN EN 1677-1
    • Explosion protection: No
    • RAL color No.: Customizable
    • Identification label available: No
    Inspection and Standards
    • Every load-bearing component is stamped with a batch number for traceability; all rotating components undergo 100% magnetic particle inspection
    • Independently tested with double the safe working load during certification, and withstands 1.5x load fatigue testing for 20,000 cycles
    • Manufactured to meet EN1677-1 production standards, with certified test reports available upon request

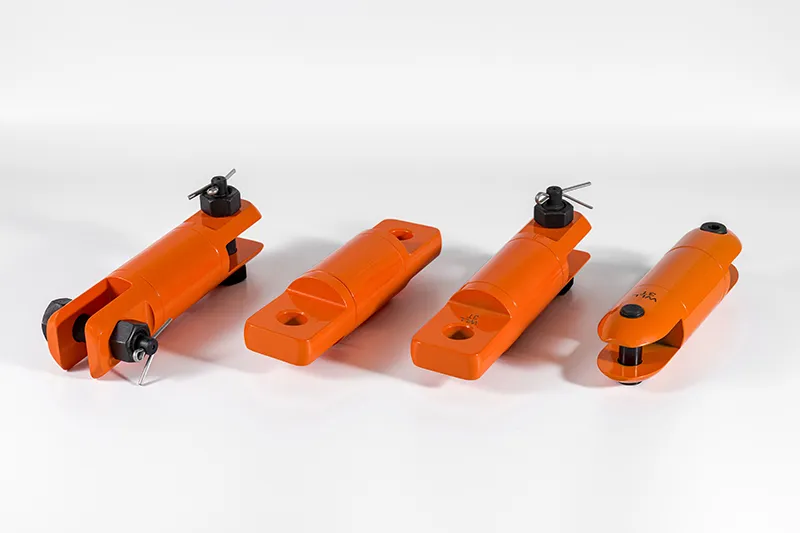

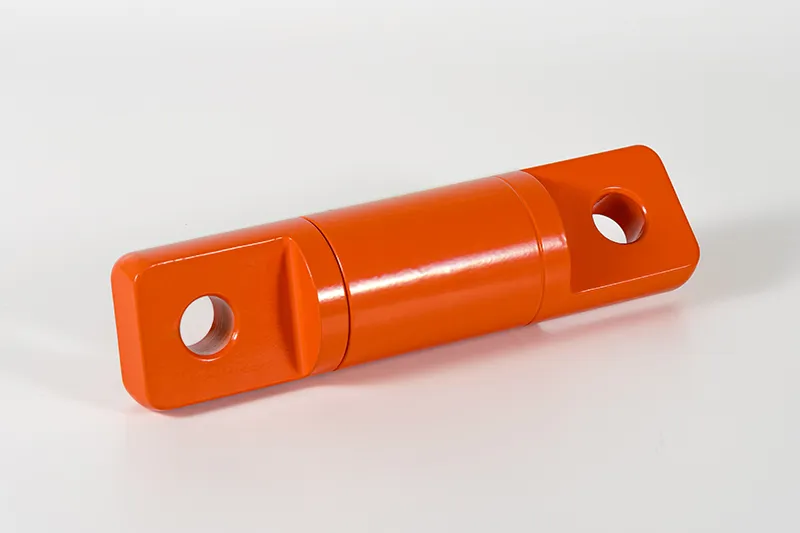

    Bearing swivel is a specialized device designed for precisely and reliably lifting and handling loads. It is mounted between the lifting rope and the load to provide free rotation for large cranes and heavy duty lifting equipment that are commonly used in outdoor applications. The bearing swivel is sometimes also known as wire rope anti-rotation connector since it serves as a connector to allow the safe and reliable rotation of loads without rope twisting. Supporting a working load limit of 0.75–60t (customizable up to 200t), it rotates smoothly up to 360° under load while handling high tension and compressive forces. This swivel ensures safe and efficient handling of industrial equipment and materials, making it ideal for heavy-duty lifting in demanding environments.
    Bearing Swivel
    Key Features

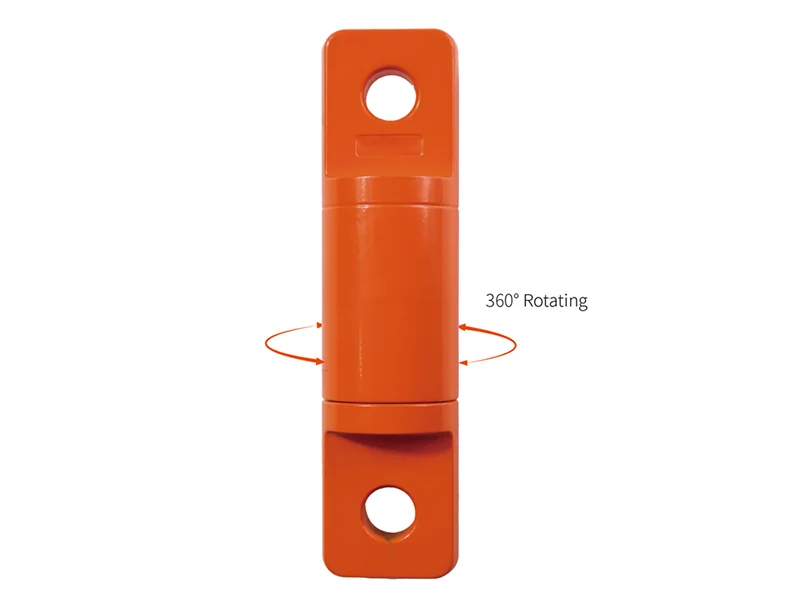

    • Built-in bearings allow smooth 360° rotation, ensuring high compressive strength and enhanced performance
    • Equipped with a grease fitting for easy maintenance and upkeep
    • Supports a working load limit of 0.75–60t, with custom options available for load capacities up to 200t
    • Features a 4:1 safety factor and undergoes 100% non-destructive testing
    • Swivel ring forged from high-strength, high-toughness alloy steel, with precision machining and heat treatment for added durability
    • Epoxy resin electrostatic powder coating ensures corrosion resistance and extended service life
    Specifications

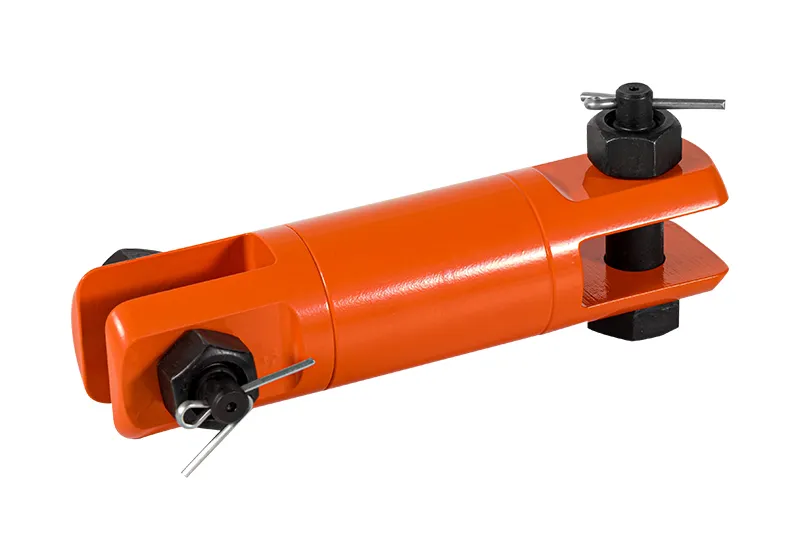

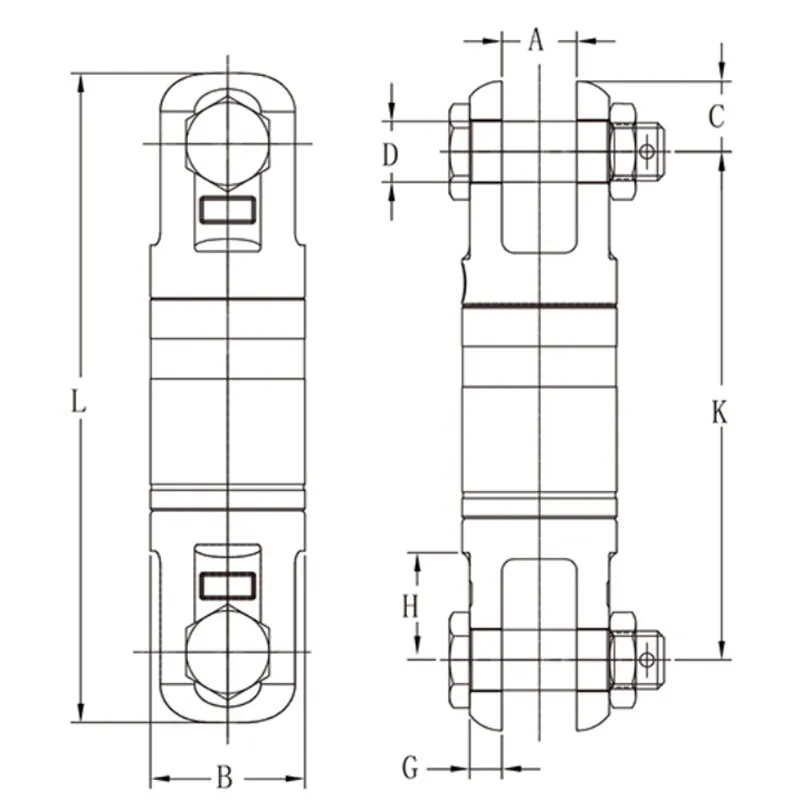

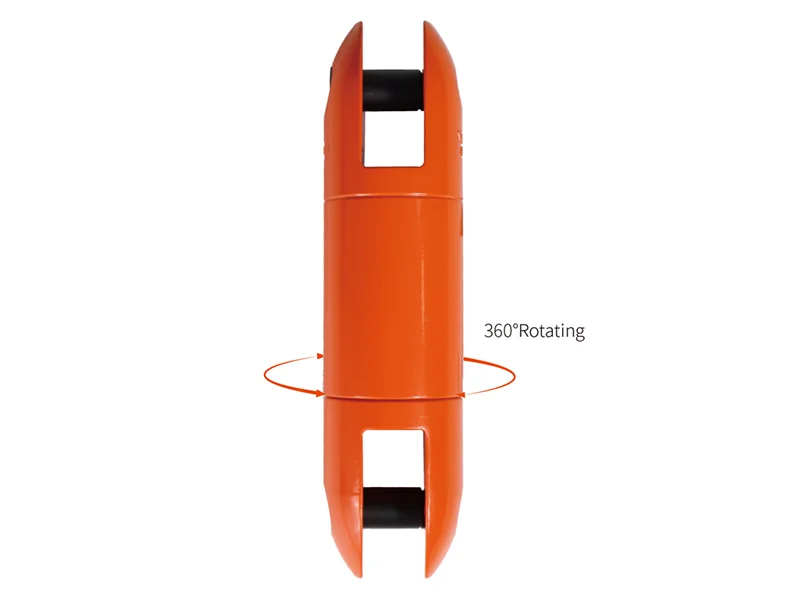

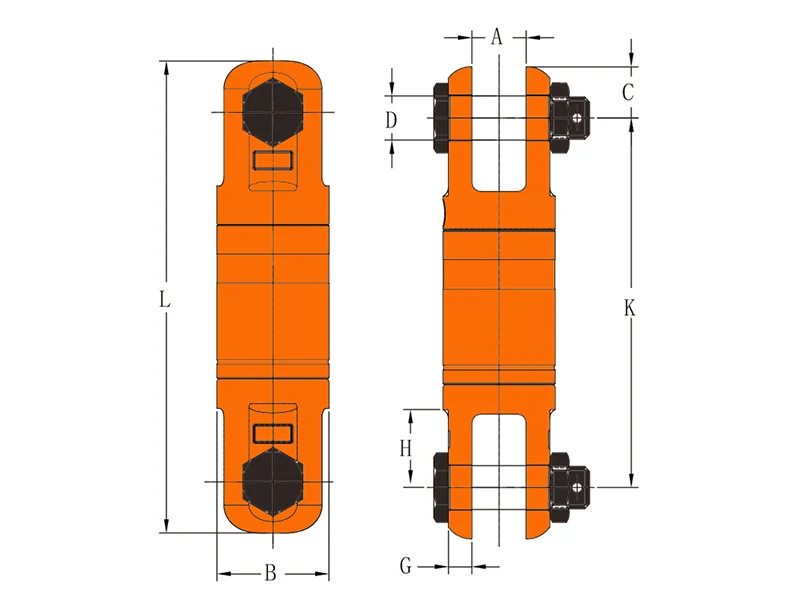

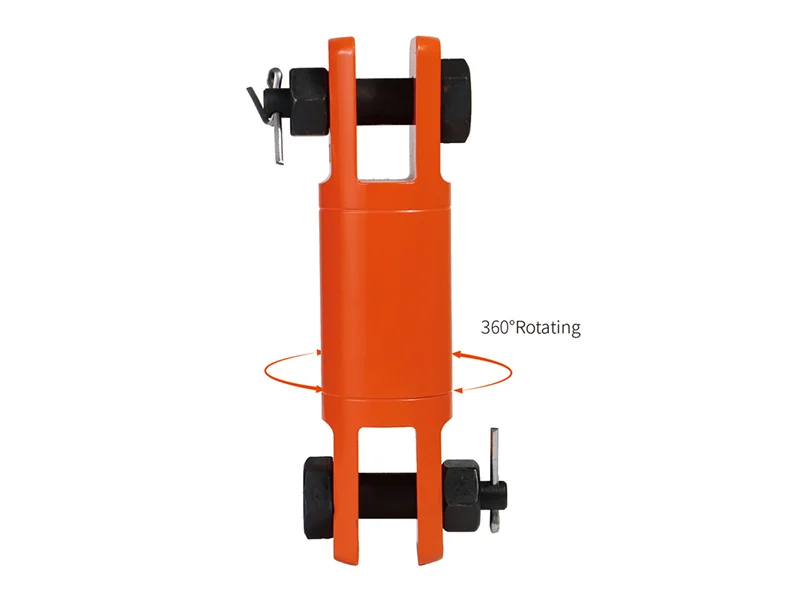

    • Jaw/Jaw Bearing Swivel
    • Jaw/Jaw Bearing Swivel
    Item No. Working Load Limit (t) Dimensions (mm) Weight (kg)
    B K L C A D G H
    BLT086-007 0.75 34 107 133 13 15 10 6 22 0.5
    BLT086-015 1.50 40 119 159 20 18 13 8 26 0.9
    BLT086-030 3.00 53 160 210 25 23 19 10 32 2.3
    BLT086-050 5.00 67 203 267 32 32 22 14 37 4.4
    BLT086-085 8.50 78 250 326 38 40 30 14 54 7.6
    BLT086-100 10.00 106 310 410 50 42 38 25 54 19.5
    BLT086-150 15.00 119 320 440 60 48 38 25 57 21.7
    BLT086-250 25.00 137 405 535 65 62 50 30 70 39.5
    BLT086-350 35.00 154 415 545 65 62 50 33 70 46.2
    BLT086-600 60.00 270 670 890 110 100 80 75 120 352.0

    * Safety factor of 4:1;

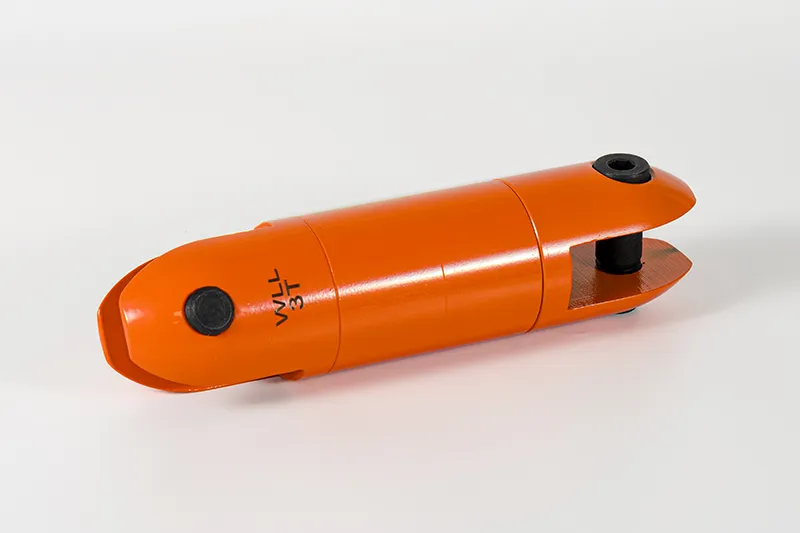

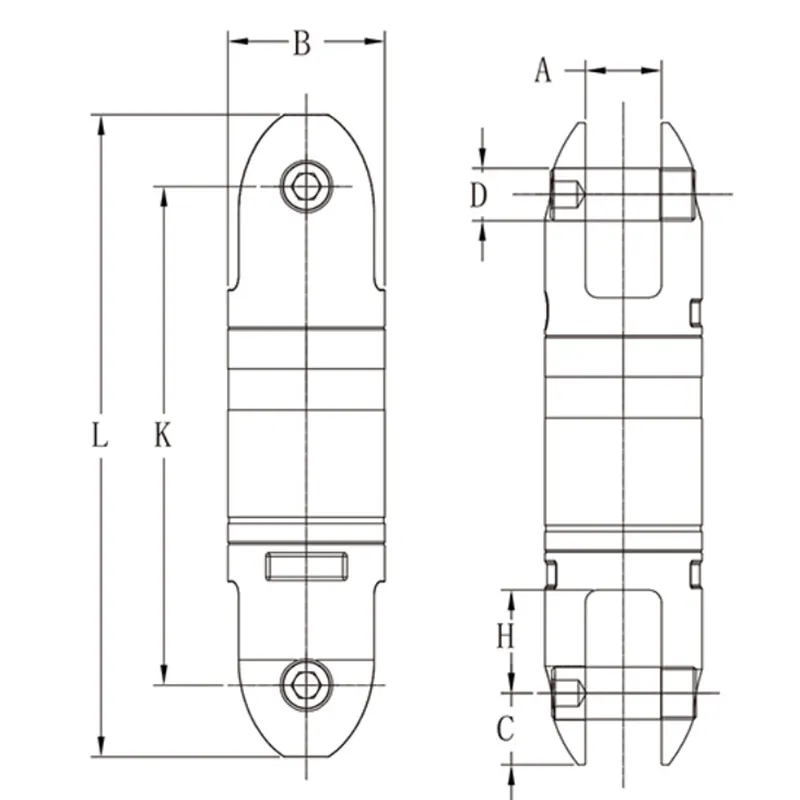

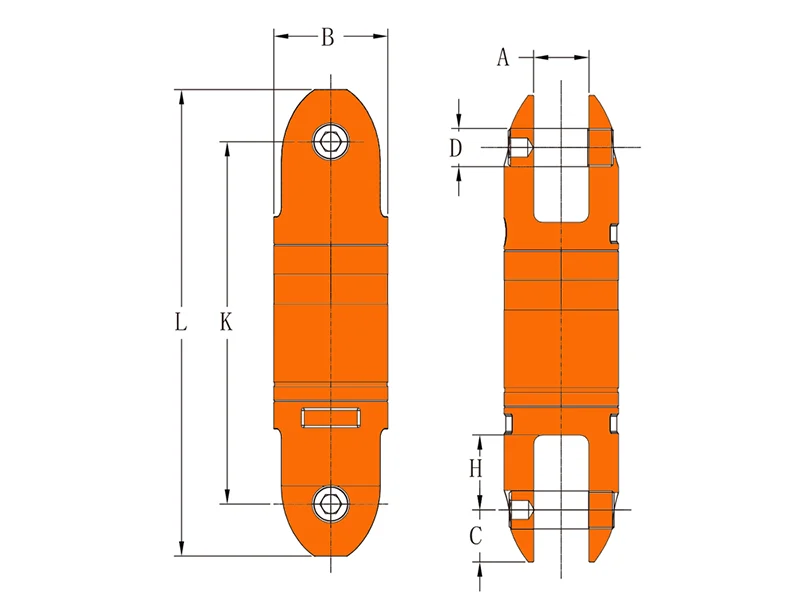

    • Bullet Style Bearing Swivel
    • Bullet Style Bearing Swivel
    Item No. Working Load Limit (t) Dimensions (mm) Weight (kg)
    B K L C A D H
    BLT087-007 0.75 34 107 131 12 15 10 22 0.5
    BLT087-015 1.50 40 119 151 16 18 12 26 0.8
    BLT087-030 3.00 53 160 210 25 23 16 32 2.0
    BLT087-050 5.00 67 205 267 31 32 22 37 3.9
    BLT087-085 8.50 78 246 316 35 37 24 50 6.7
    BLT087-100 10.00 106 316 408 46 42 38 53 18.6
    BLT087-150 15.00 119 330 426 48 48 38 56 19.9
    BLT087-250 25.00 137 403 525 61 62 50 69 36.5
    BLT087-350 35.00 154 423 545 61 62 50 69 47.6

    * Safety factor of 4:1;

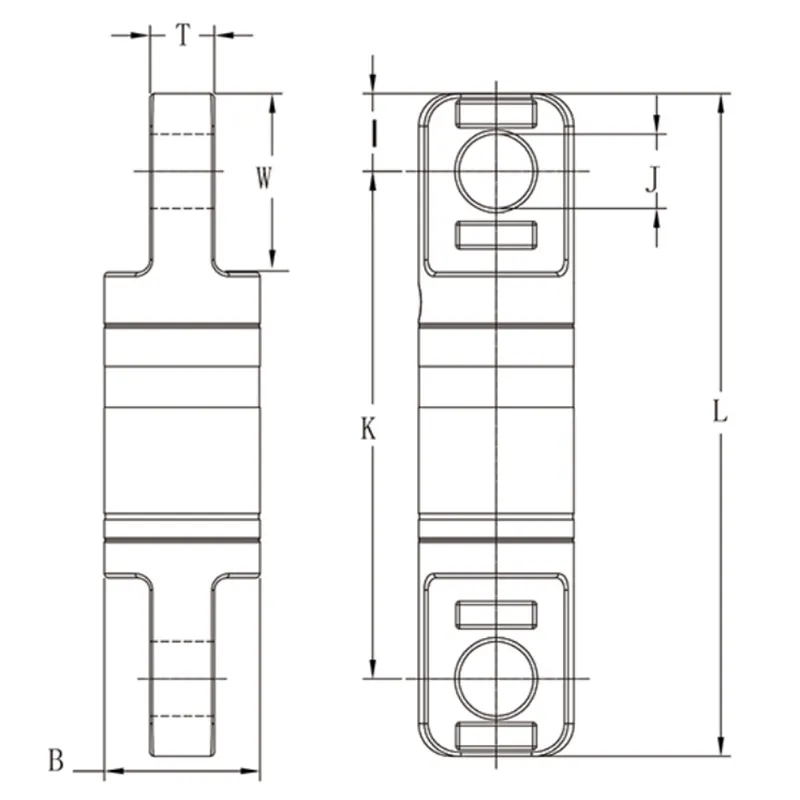

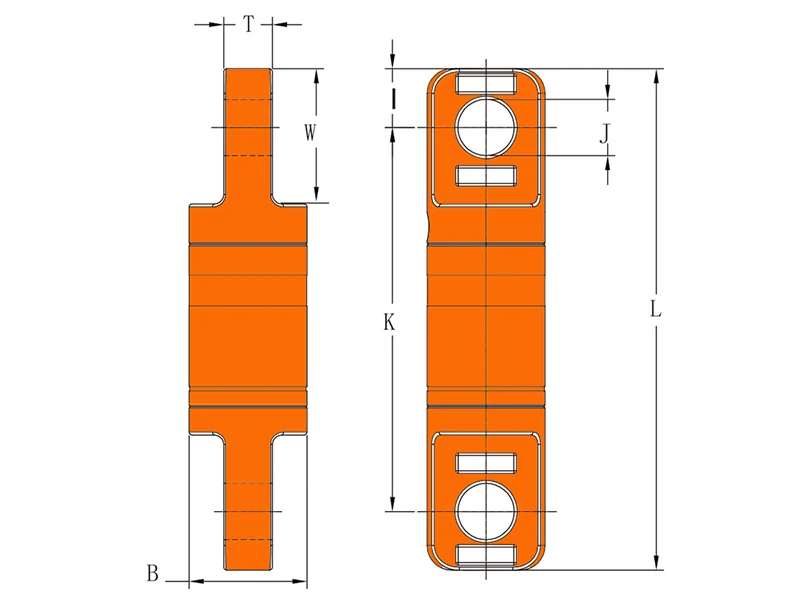

    • Eye/Eye Bearing Swivel
    • Eye/Eye Bearing Swivel
    Item No. Working Load Limit (t) Dimensions (mm) Weight (kg)
    B K L I T J W
    BLT088-007 0.75 34 107 133 13 12 10.5 35 0.5
    BLT088-015 1.50 40 119 159 20 15 13.5 46 0.9
    BLT088-030 3.00 53 160 210 25 20 20.0 57 2.1
    BLT088-050 5.00 67 203 267 32 26 33.0 69 4.3
    BLT088-085 8.50 78 250 326 38 32 37.0 92 7.3
    BLT088-100 10.00 106 310 410 50 42 44.0 104 17.0
    BLT088-150 15.00 119 320 440 60
    00     		49 54.0 117 21.2
    BLT088-250 25.00 137 405 545 70 60 66.0 140 39.0
    BLT088-350 35.00 154 415 555 70 60 66.0 140 45.8
    BLT088-600 60.00 270 670 890 110 75 80.0 230 253.0

    * Safety factor of 4:1;

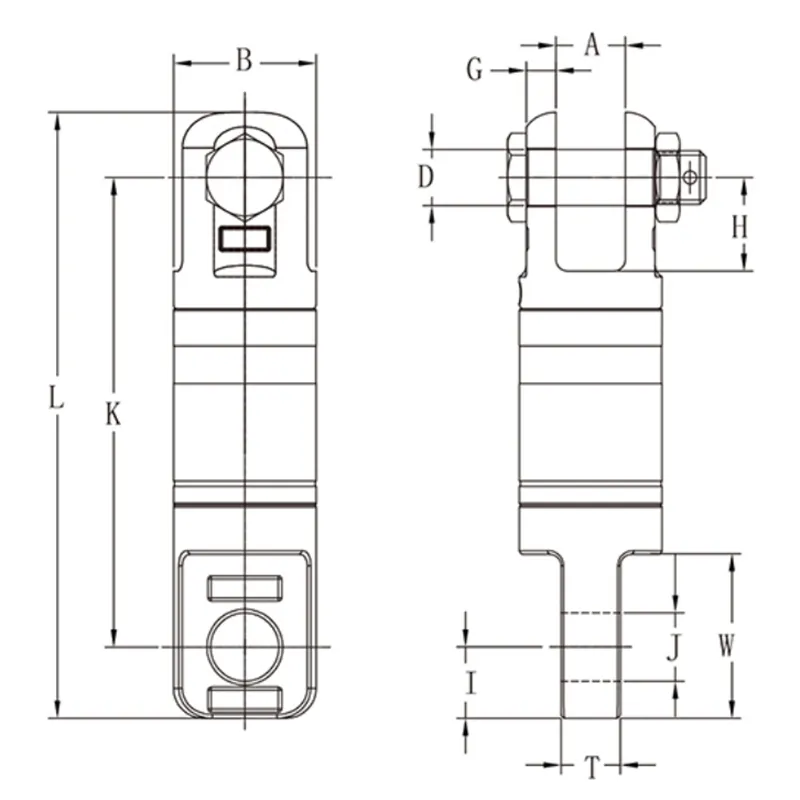

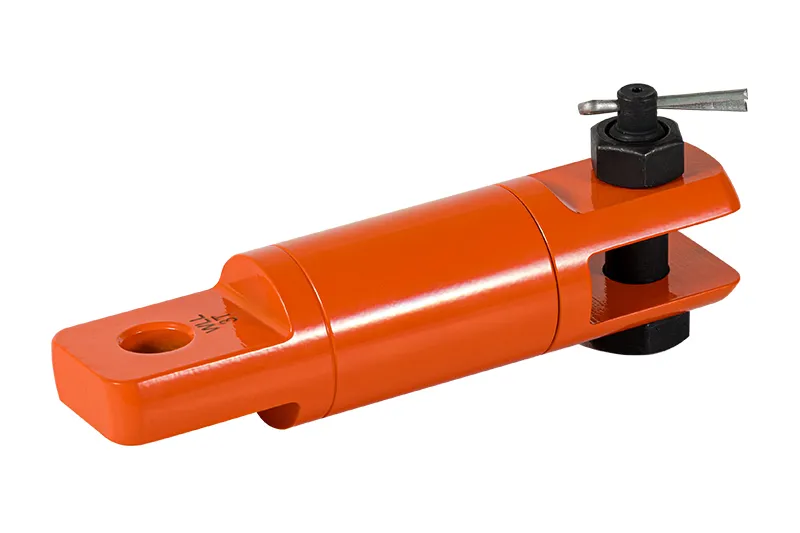

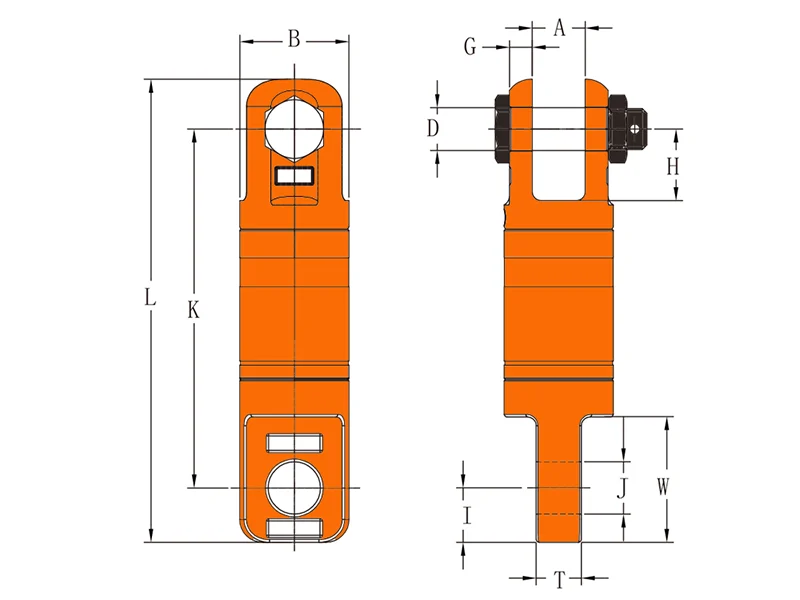

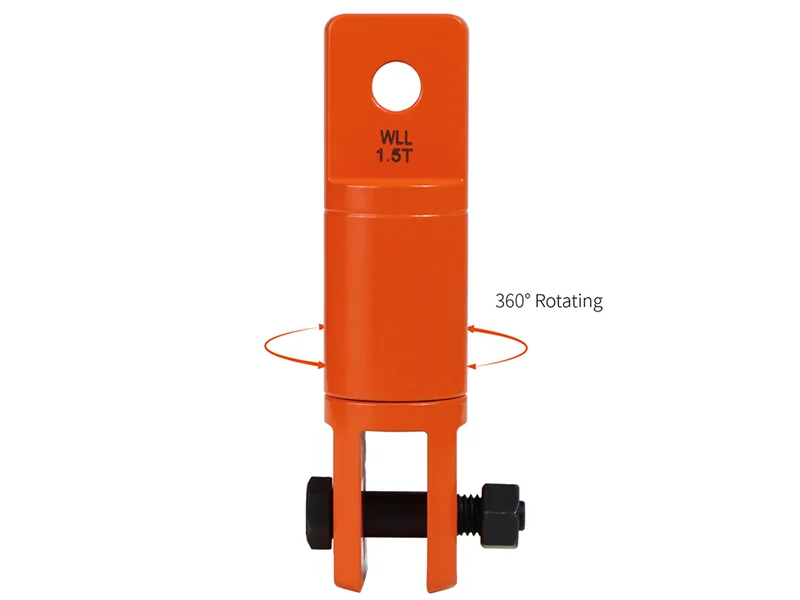

    • Eye/Jaw Bearing Swivel
    • Eye/Jaw Bearing Swivel
    Item No. Working Load Limit (t) Dimensions (mm) Weight (kg)
    B K L A G D H T J W I
    BLT089-007 0.75 34 107 133 15 6 10 22 12 10.5 25 13 0.5
    BLT089-015 1.50 40 119 159 18 8 13 26 15 13.5 46 20 0.9
    BLT089-030 3.00 53 160 210 23 10 10
    2     		32 20 20.0 57 25 2.2
    BLT089-050 5.00 67 203 267 32 14 22 37 26 33.0 69 32 4.4
    BLT089-085 8.50 78 250 326 40 14 30 54 32 37.0 92 38 7.4
    BLT089-100 10.00 106 310 410 42 25 38 54 42 44.0 104 50 18.0
    BLT089-150 15.00 119 320 440 48 25 38 57 49 54.0 117 60 21.2
    BLT089-250 25.00 137 405 540 62 30 50 70 60 66.0 140 70 40.0
    BLT089-350 35.00 154 415 550 62 33 50 70 60 66.0 140 70 46.7
    BLT089-600 60.00 270 670 890 100 75 80 120 75 80.0 230 110 302.0

    * Safety factor of 4:1;
