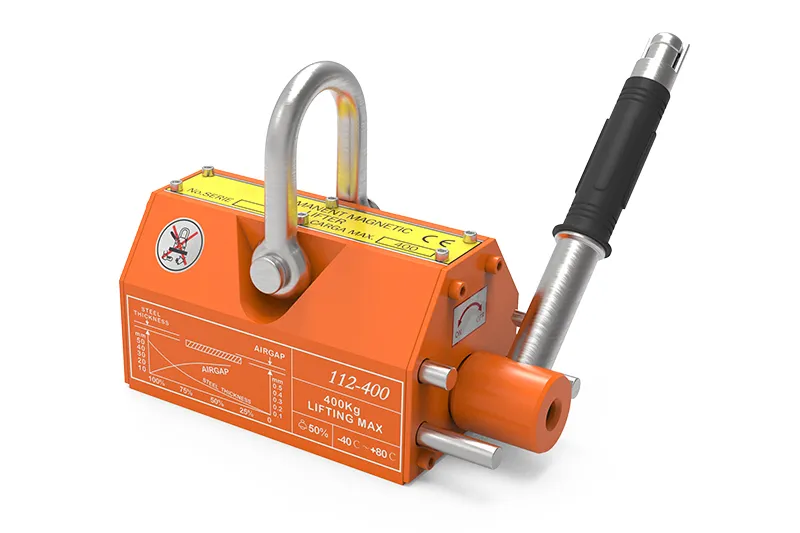

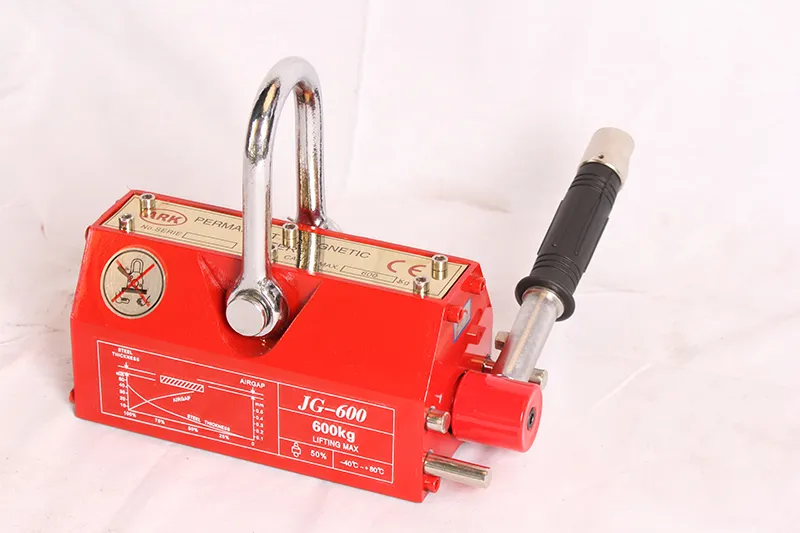

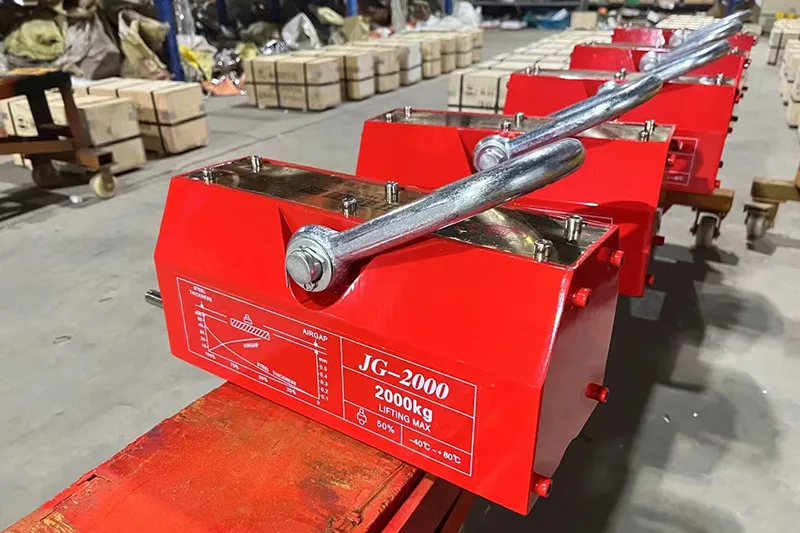

    Manual Permanent Lifting Magnet

    The manual permanent lifting magnet is a versatile and easy-to-use lifter designed for single-handed operation. Equipped with a handle switch featuring a safety lock, it eliminates the need for external power, ensuring safe and efficient handling. Ideal for lifting steel plates, iron blocks, cylindrical magnetic materials, smooth mechanical components, and various molds, this magnet is widely used across industries such as machinery manufacturing, automotive production, shipbuilding, port handling, transportation, and construction.

    Request a Quote
    Manual Permanent Lifting Magnet
    Key Features
    • V-shaped lifting surface designed for securely lifting cylindrical and flat materials
    • Made with high-performance Nd-Fe-B (neodymium-iron-boron) magnets for reliable lifting strength
    • Stainless steel/aluminum label materials ensure lasting clarity
    • Working load limit (WLL) of 0.1 tons to 10 tons, meeting various lifting requirements
    • Available with 2x, 2.5x, 3x, or 3.5x safety factors for enhanced security
    • Each unit undergoes 100% static load testing before leaving the factory
    • CE-certified for safety and quality assurance
    • Standard red and yellow color finishes, with customization options available
    Specifications
    Heavy Duty Flange Lifting Point
    Heavy Duty Flange Lifting Point

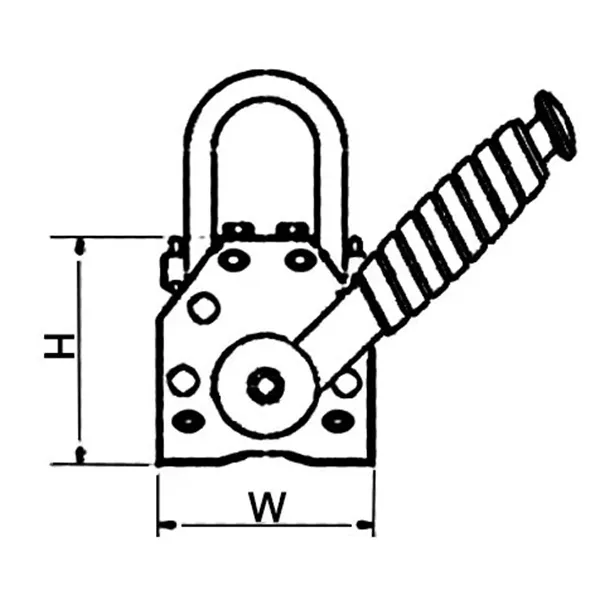

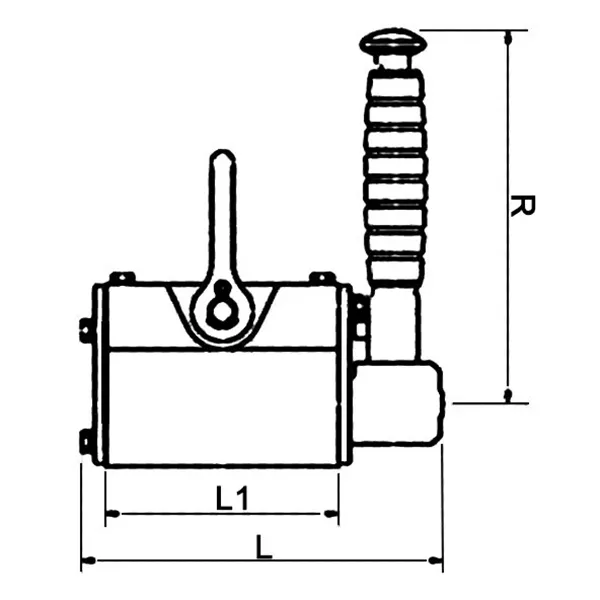

    Model Rated Lifting Capacity (kg) Max. Pull-Off Strength (kg) W (mm) L (mm) H (mm) R (mm) Unit Weight (kg)
    PML1-100 100 300 62 130 67 155 4
    PML1-200 200 600 69 199 73 155 6
    PML1-400 400 1200 95 210 92 195 11
    PML1-600 600 1800 120 265 115 228 22
    PML1-1000 1000 3000 153 320 135 255 39
    PML1-2000 2000 5000 172 415 165 355 74
    PML1-3000 3000 7500 175 500 165 355 92
    PML1-5000 5000 12500 230 620 215 580 245

    (The listed models represent only a portion of our specifications. We provide lifting magnets with a 3:1 safety factor and a working load limit of 1–5 tons, with additional customization available to meet specific customer requirements.)

    Notes:

    • Permanent lifting magnets are exclusively designed for vertical lifting applications.
    • For steel plates exceeding 3 meters in length, it is recommended to use multiple magnets in combination to ensure safe and stable lifting.
    • The lifting magnet performs optimally with thicker steel plates. It is not recommended to use this product for steel plates with a thickness of less than 15 mm.
    • The lifting capacity is reduced to 30% of the stated parameters when handling cylindrical steel. For specific parameters, please contact our team.

    Please provide the dimensions of the material to be lifted, and our service team will recommend the most suitable lifting magnet for your needs. Additionally, we offer spare parts such as handles and bearings for maintenance. Feel free to contact us for further assistance.
