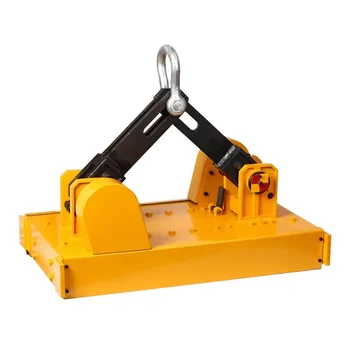

    Automatic Permanent Lifting Magnet

    The automatic permanent lifting magnet offers a hands-free solution for efficient material handling, requiring no manual operation. Its functionality relies on the lifting and lowering motion of an electric crane hook to activate or deactivate its magnetic force, ensuring safety and convenience without additional power supply. This magnet is designed to lift and transport steel plates, ferromagnetic materials, cylindrical workpieces, and molds, making it indispensable across industries like mechanical manufacturing, automotive production, shipbuilding, logistics, and construction.

    Request a Quote
    Automatic Permanent Lifting Magnet
    Key Features
    • Automatically activates or deactivates magnetic force via electric crane hook movement, eliminating the need for manual operation and saving labor
    • Made from high-performance Nd-Fe-B magnetic material for strong and consistent lifting capacity
    • Stainless steel or aluminum labeling for durability
    • Working load limit (WLL) of 1–5 tons
    • 100% factory-tested with static load testing to ensure reliability
    • CE certified for compliance with safety standards
    • Available in red, yellow, and other customizable options for colors
    Specifications
    Heavy Duty Flange Lifting Point
    Heavy Duty Flange Lifting Point

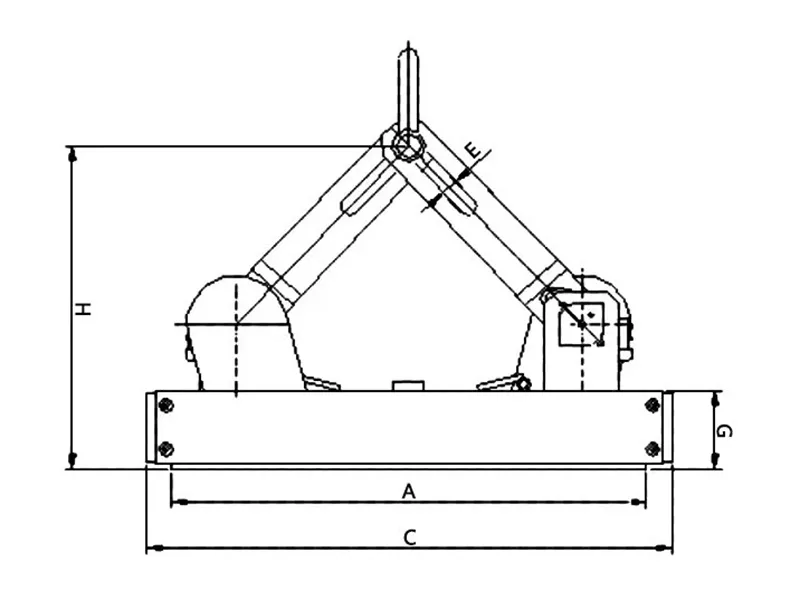

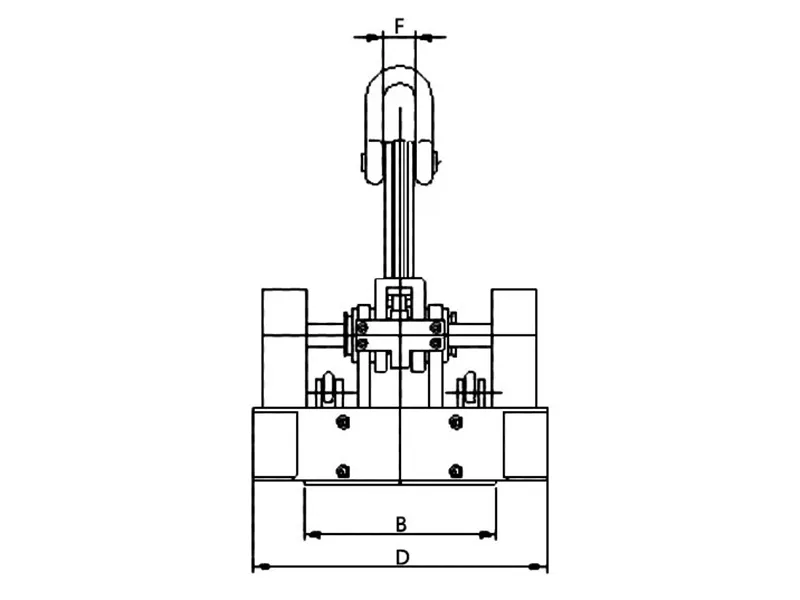

    Model Rated Lifting Capacity (kg) Max. Pull-Off Strength (kg) A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) G (mm) H (mm) Unit Weight (kg)
    PML2-1000 1000 4000 670 238 740 430 80 55 127 467 195
    PML2-2000 2000 7000 760 328 825 530 80 55 127 515 305
    PML2-3000 3000 10500 840 396 920 610 85 65 160 550 495
    PML2-5000 5000 15000 1000 436 1070 670 85 65 160 650 590

    Notes:

    • Exclusively designed for vertical lifting applications
    • For steel plates longer than 3 meters, it is recommended to use multiple magnets in combination
    • Not suitable for lifting steel plates thinner than 15mm
    • When lifting cylindrical steel, the load-bearing capacity is 30% of the rated parameter. Contact us for detailed specifications

    The performance of the magnet improves significantly with thicker steel plates. Please provide the dimensions of the materials for your lifting operation, and our service team will recommend the most suitable lifting magnet for your needs. Additionally, we offer replacement bearings and other wear-and-tear components for customer convenience. For further assistance, please feel free to contact us.
    Want to learn more about our products?
    Email: info@mainlywell.com
    Tel.: +86-15122032926
    Get in Touch
    Lifting Points and Rigging Slings Manufacturer

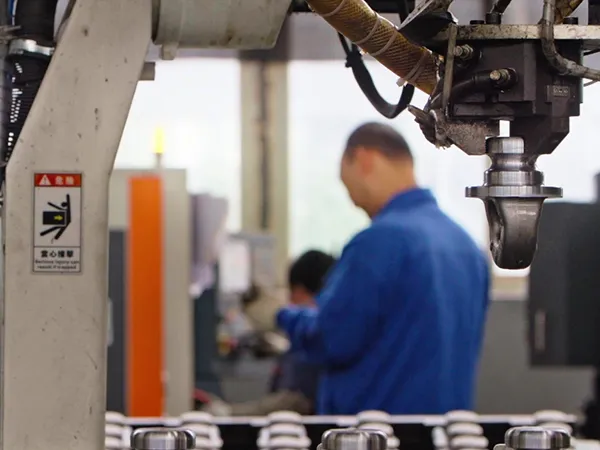

      1. Material & Production
        Material & Production
      2. We specialize in the design, manufacturing, and sales of lifting and rigging hardware, such as lifting points and permanent lifting magnets. Since our lifting products play a critical role in our customers' operations, where safety is paramount, we place the utmost importance on quality. Read More

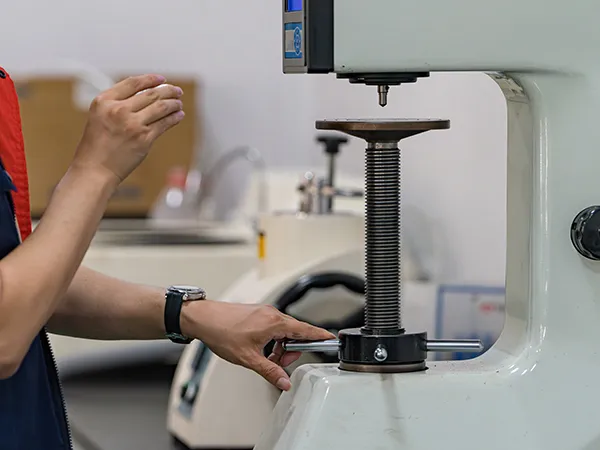

      1. Quality Control
        Quality Control
      2. At Mainlywell, we operate a fully equipped materials analysis laboratory and utilize advanced quality testing equipment, including digital Rockwell hardness tester, metallographic analysis instrument, fatigue tester, 1000KN-2000KN tensile testing machines, and salt spray tester.Read More

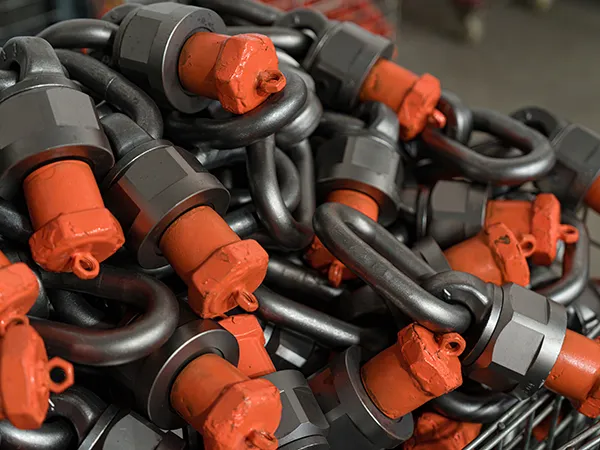

      1. OEM/ODM Service
