BLT103 Rigging Hardware

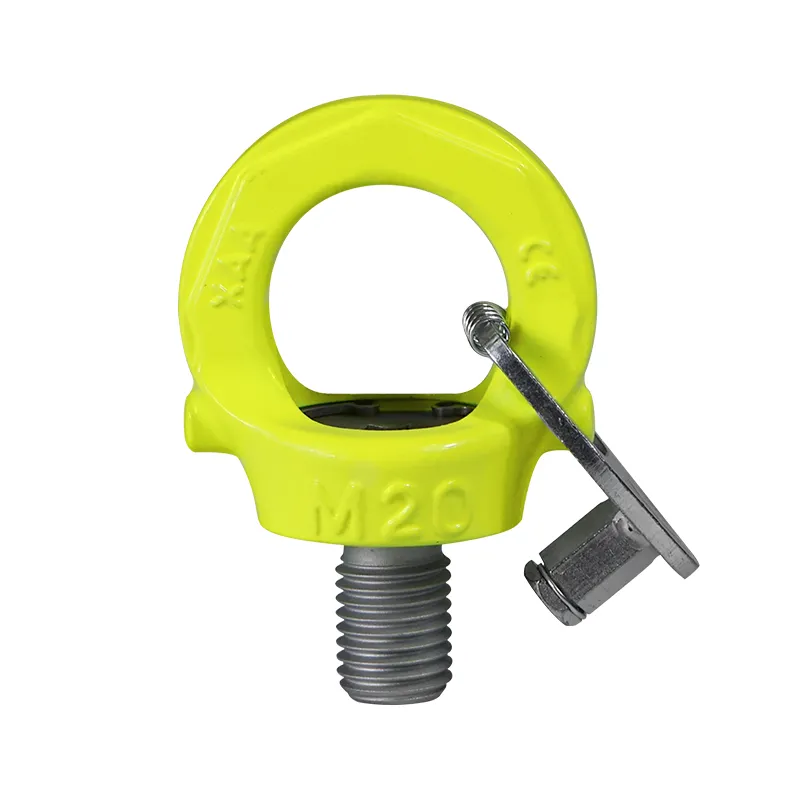

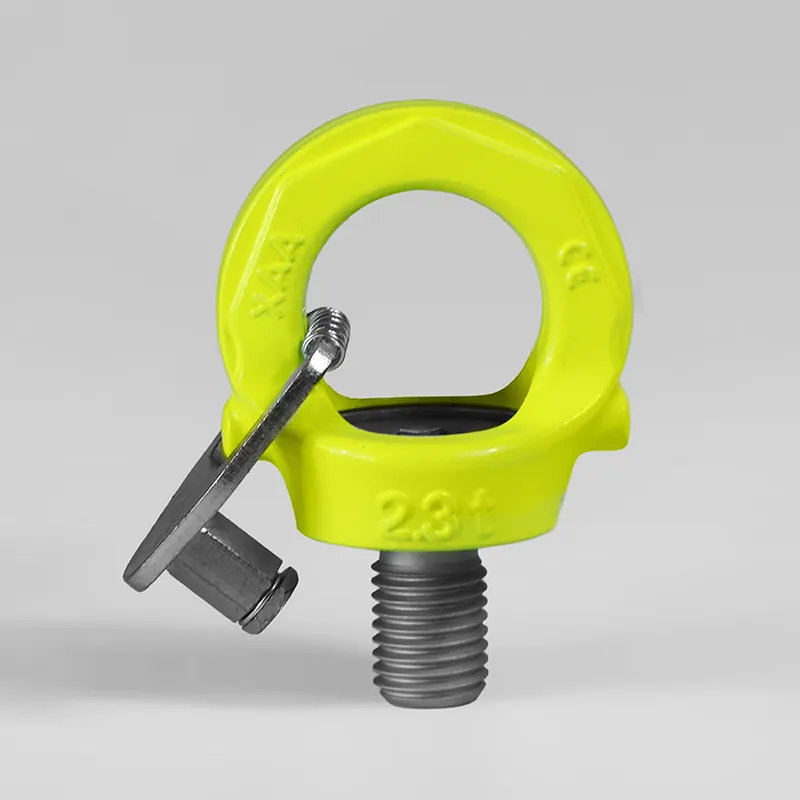

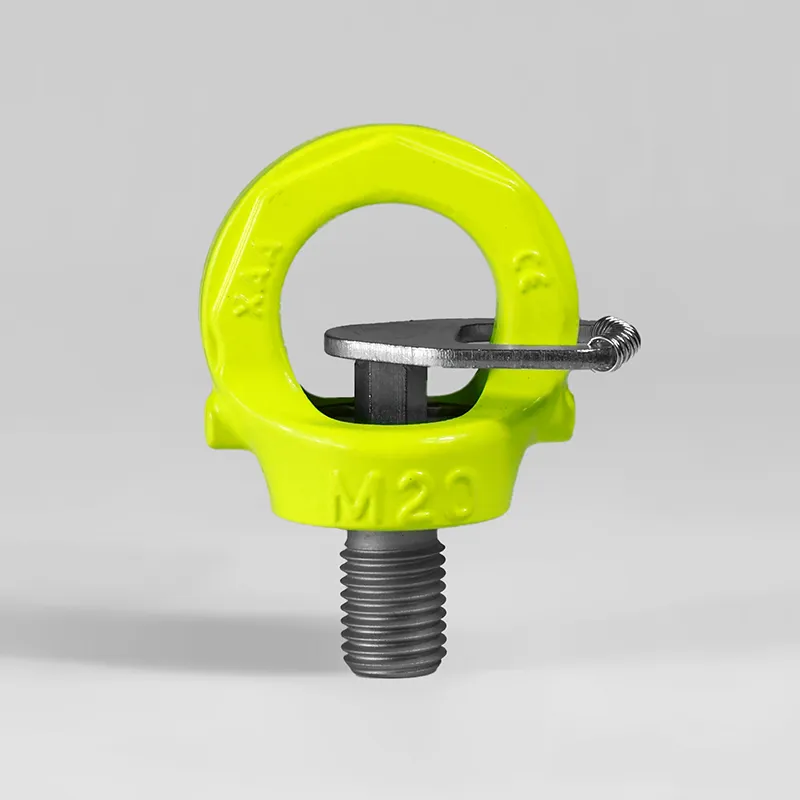

Key Eye Point S+ with Self Locking Plate

Key Eye Point S+ (0.3-18t)
  • Key Eye Point S+ (0.3-18t)
  • Key Eye Point S+ (0.3-18t)
  • Key Eye Point S+ (0.3-18t)
    • Request a Quote
    BLT103 Rigging Hardware

    Key Eye Point S+ with Self Locking Plate
    • Working Load Limit
      Working Load Limit 0.3-18t
    • Rotation
      Rotation 360 degree
    • Material: High-strength chromium-molybdenum alloy steel
    • Attachment type: Screw-in
    • Rotation angle: 360°
    • Pivot angle: 0°
    • Surface treatment (rings): Powder-coated
    • Surface treatment (bolts): Dacromet
    • Working temperature range: -40℃~+200℃
    • Thread size: M8–M64
    • Bolt grade: 10.9
    • Custom thread: Metric/Unified National Coarse (UNC)/Unified National Fine (UNF)/pipe thread/lengthened/shortened
    • Rotates under load: No
    • Holding spring for suspension link: No
    • Working load limit: 0.3T-18T
    • Safety factor: 4:1
    • Standard: DIN EN 1677-1
    • Explosion protection: No
    • RAL color No.: Customizable
    • Identification label available: No
    Inspection and Standards
    • Passed 6g plug gauge inspection for precision-threaded holes
    • Withstood 1.5x load fatigue testing for 20,000 cycles and 2.5x rated load testing
    • Magnetic particle inspection ensures crack-free integrity
    • Manufactured to EN1677-1 standards with certified test reports available upon request
    Applications
    • Wind power: Prevents equipment damage from fixed lifting angles, ensures safe blade positioning during lifting and installation
    • Port operations: Suitable for industrial components and container lifting, with resistance for high-chloride corrosive environments
    • Applicable in various other industries such as oil and gas drilling, equipment transportation, and industrial plants

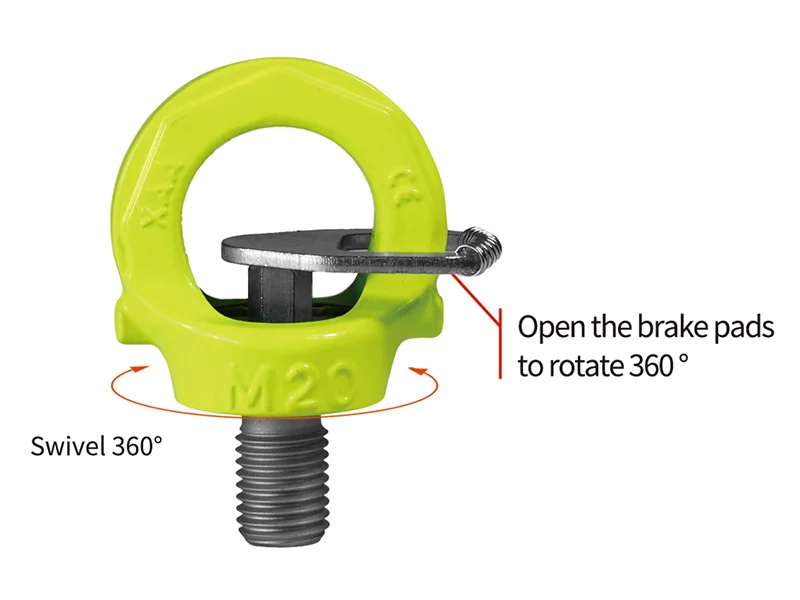

    Designed to excel in confined spaces and demanding lifting scenarios, this key eye point with self-locking plate offers a working load limit ranging from 0.3t to 18t. The lifting eye rotates through 360° adjustable in the direction of the load and combines advanced strength, compact design, and self-locking features to enhance efficiency and safety. It is ideal for precision lifting in wind power installations, industrial applications, and marine operations.
    Key Eye Point S+ (0.3-18t)
    Key Features
    • Enhanced material composition for improved durability and resilience
    • Optimized tensile strength and fatigue performance, outperforming BLT94 key eye point under 90° load conditions
    • Precision one-piece forging with advanced heat treatment for increased hardenability
    • Eco-friendly coating with over 400 hours of salt spray resistance, suitable for marine and corrosive environments
    • Innovative patented symmetrical design for improved aesthetics and balance, offering full 360° rotation

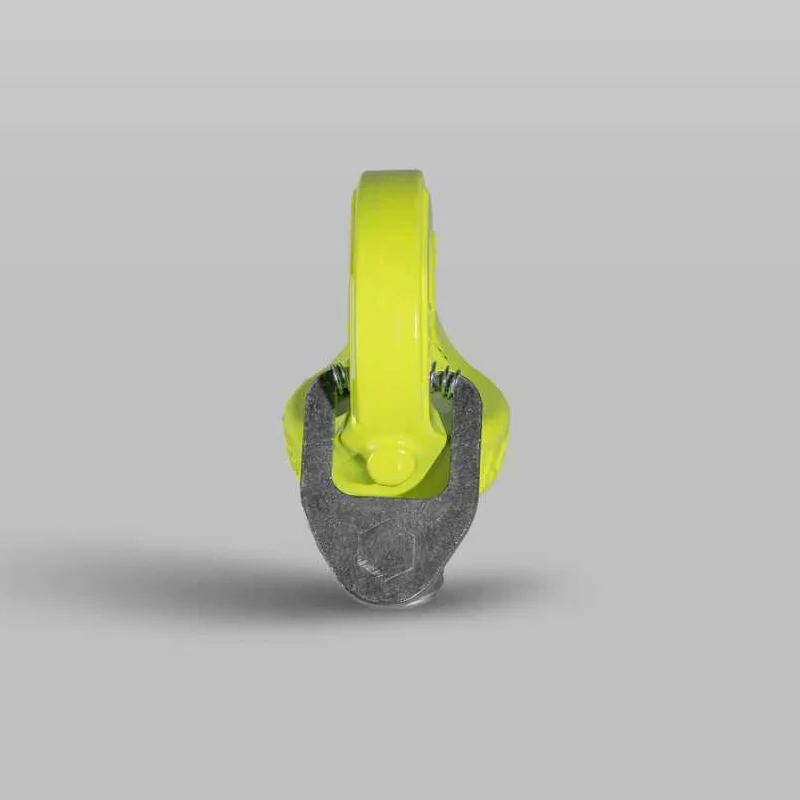

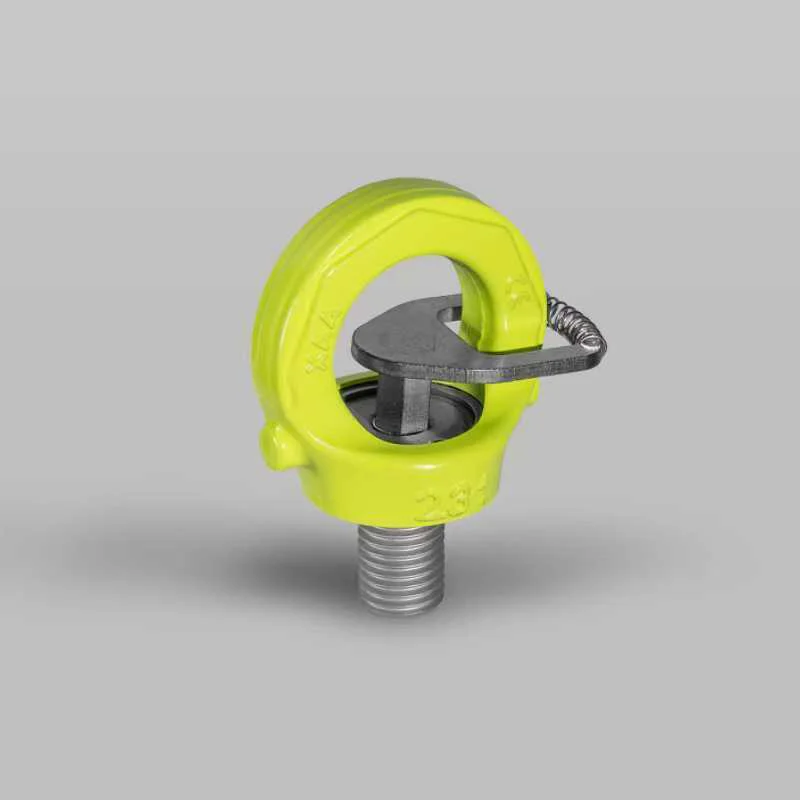

    • Equipped with a self-locking plate for quick and tool-free installation
    • Compact build designed for tight and challenging lifting environments
    • Available in M8-M64 and customizable thread options, including extended, shortened, coarse, fine, metric, and UNC threads
    • Rated work load limit (WLL) of 0.3-18T
    • Safety factor of 4:1, with 100% non-destructive testing
    • Each load-bearing component is stamped with a production batch number for traceability
    • Forged from high-strength chromium-molybdenum alloy steel, quenched and tempered for enhanced strength and toughness
    • Features an epoxy resin electrostatic powder coating for the ring body and Dacromet rust-proof treatment for the bolt
    Specifications

    (Available in Metric Thread and UNC Thread)

    • Key Eye Point S+ (0.3-18t)
    • Key Eye Point S+ (0.3-18t)

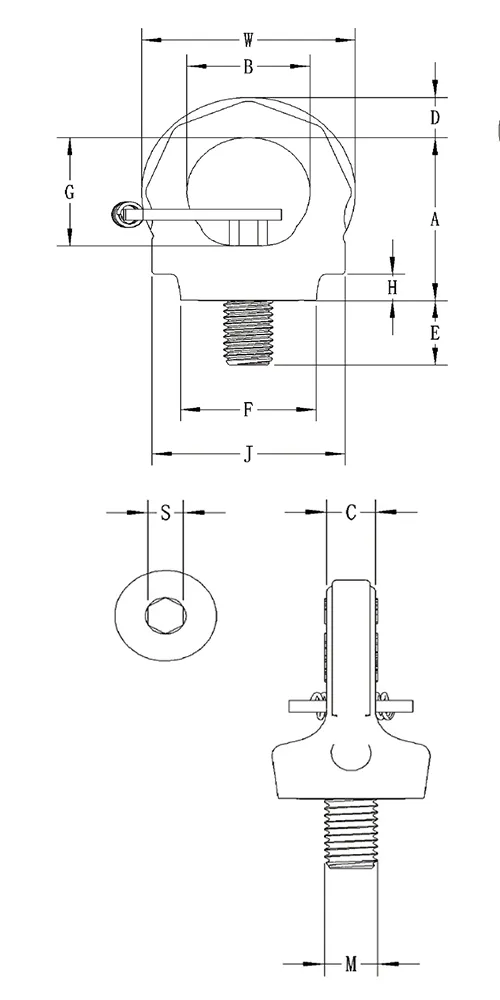

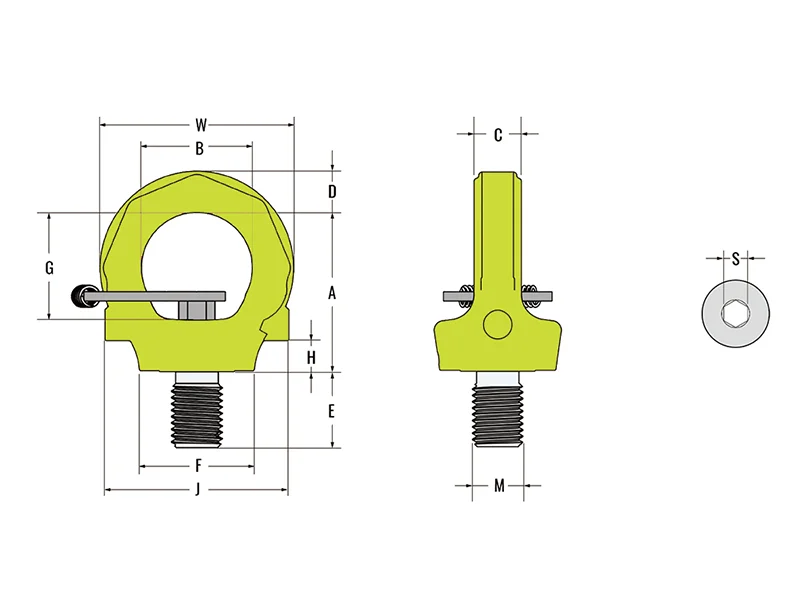

    Item No. Working Load Limit (t) M Dimensions (mm) Torque (Nm) Weight (kg)
    E A B C D F J H W G S
    BLT103-M8 0.30 8×1.25 12 36.5 25 10 10.0 25 41 6 44 25 6 10-40 0.14
    BLT103-M10 0.40 10×1.5 15 36.5 25 10 10.0 26 41 6 44 25 6 10-40 0.15
    BLT103-M12 0.75 12×1.75 18 44.5 30 11 11.0 33 47 7 52 30 8 15-40 0.23
    BLT103-M16 1.50 16X2.0 24 50.5 35 15 13.0 36 58 11 61 35 10 45-130 0.39
    BLT103-M20 2.30 20×2.5 30 58.0 40 17 15.0 44 68 14 70 40 12 100-170 0.65
    BLT103-M24 3.20 24X3.0 36 71.0 49 20 17.5 53 75 15 84 49 14 190-280 1.10
    BLT103-M30 4.50 30x3.5 45 88.0 61 25 22.0 66 95 23 105 60 17 270-600 2.13
    BLT103-M36 7.00 36×4.0 54 106.0 73 30 26.5 76 116 31 126 74 22 270-600 3.70
    BLT103-M42 9.00 42×4.5 63 122.0 83 35 32.0 89 137 38 147 84 24 350-800 5.60
    BLT103-M48 12.00 48×5.0 72 141.5 95 39 38.0 105 151 38 168 98 27 350-800 8.60
    BLT103-M56 16.00 56×5.5 84 160.5 110 49 48.0 125 180 49 168 110 27 350-801 14.50
    BLT103-M64 18.00 64×6.0 96 164.0 110 49 48.0 125 180 49 168 110 27 350-802 15.20

    * Safety factor of 4:1;
    * The length and thread of bolts can be made according to requirements;

    Working Load Applications

    Lifting Method Working Load Applications Working Load Applications Working Load Applications Working Load Applications Working Load Applications Working Load Applications Working Load Applications Working Load Applications
    Number of Sling Legs 1 2 1 2 2 2 3-4 3-4
    Lifting Angle 0° 0° 90° 90° 0-45° 45-60° Asymmetry 0-45° 45-60° Asymmetry
    Item No. Thread M Working Load Limit (t)
    BLT103-M8 8×1.25 1 2 0.3 0.60 0.42 0.30 0.30 0.63 0.45 0.30
    BLT103-M10 10×1.5 1 2 0.4 0.80 0.56 0.40 0.40 0.80 0.60 0.40
    BLT103-M12 12×1.75 2 4 0.75 1.50 1.00 0.75 0.75 1.50 1.10 0.75
    BLT103-M16 16×2.0 4 8 1.5 3.00 2.10 1.50 1.50 3.10 2.20 1.50
    BLT103-M20 20×2.5 6 12 2.3 4.60 3.20 2.30 2.30 4.80 3.40 2.30
    BLT103-M24 24×3.0 8 16 3.2 6.40 4.50 3.20 3.20 6.70 4.80 3.20
    BLT103-M30 30×3.5 12 24 4.5 9.00 6.30 4.50 4.50 9.40 6.70 4.50
    BLT103-M36 36×4.0 16 32 7 14.00 9.80 7.00 7.00 14.70 10.50 7.00
    BLT103-M42 42×4.5 24 48 9 18.00 12.60 9.00 9.00 18.90 13.50 9.00
    BLT103-M48 48×5.0 32 64 12 24.00 16.80 12.00 12.00 25.00 18.00 12.00
    BLT103-M56 56×5.5 34 68 16 32.00 22.40 16.00 16.00 33.60 24.00 16.00
    BLT103-M64 64x6.0 36 72 18 36.00 25.00 18.00 18.00 37.50 27.00 18.00

    UNC Thread Key Eye Point (with Self Locking Plate), BLT103
    Item No. Working Load Limit (t) Thread Dimensions (mm) Torque (Nm) Weight (kg)
    M TPI E A B C D F J H W G S
    BLT103-5/16 0.30 5/16 18.0 12 36.5 25 10 10.0 25 41 6 44 25 6 10-40 0.18
    BLT103-3/8 0.40 3/8 16.0 15 36.5 25 10 10.0 26 41 6 44 25 6 10-40 0.28
    BLT103-7/16 0.75 7/16 14.0 18 44.5 30 11 11.0 33 47 7 52 30 8 15-40 0.43
    BLT103-1/2 0.75 1/2 13.0 18 44.5 30 11 11.0 33 47 7 52 30 8 15-40 0.43
    BLT103-5/8 1.50 5/8 11.0 24 50.5 35 15 13.0 36 58 11 61 35 10 45-130 0.63
    BLT103-3/4 2.30 3/4 10.0 30 58.0 40 17 15.0 44 68 14 70 40 12 45-130 0.73
    BLT103-7/8 2.30 7/8 9.0 33 58.0 40 17 15.0 44 68 14 70 40 12 100-170 0.73
    BLT103-1 3.20 1 8.0 38 71.0 49 20 17.5 53 75 15 84 49 14 190-280 1.13
    BLT103-1-1/4 4.50 1-1/4 7.0 48 88.0 61 25 22.0 66 95 23 105 60 17 270-600 2.16
    BLT103-1-1/2 7.00 1-1/2 6.0 57 106.0 73 30 26.5 76 116 31 126 74 22 270-600 3.90
    BLT103-1-3/4 9.00 1-3/4 5.0 66 122.0 83 35 32.0 89 137 38 147 84 24 350-800 5.60
    BLT103-2 12.00 2 4.5 76 141.5 95 39 38.0 105 151 38 168 98 27 350-800 8.90

    * Safety factor of 4:1;
    * The length and thread of bolts can be made according to requirements;

    Working Load Applications

    Lifting Method Working Load Applications Working Load Applications Working Load Applications Working Load Applications Working Load Applications Working Load Applications Working Load Applications Working Load Applications
    Number of Sling Legs 1 2 1 2 2 2 3-4 3-4
    Lifting Angle 0° 0° 90° 90° 0-45 45-60 Asymmetry 0-45° 45-60° Asymmetry
    Item No. Thread M Working Load Limit (t)
    BLT103-5/16 5/16 1 2 0.30 0.6 0.42 0.30 0.30 0.63 0.45 0.30
    BLT103-3/8 3/8 1 2 0.40 0.8 0.56 0.40 0.40 0.80 0.60 0.40
    BLT103-7/16 7/16 2 4 0.75 1.5 1.00 0.75 0.75 1.50 1.10 0.75
    BLT103-1/2 1/2 2 4 0.75 1.5 1.00 0.75 0.75 1.50 1.10 0.75
    BLT103-5/8 5/8 4 8 1.50 3.0 2.10 1.50 1.50 3.10 2.20 1.50
    BLT103-3/4 3/4 6 12 2.30 4.6 3.20 2.30 2.30 4.80 3.40 2.30
    BLT103-7/8 7/8 6 12 2.30 4.6 3.20 2.30 2.30 4.80 3.40 2.30
    BLT103-1 1 8 16 3.20 6.4 4.50 3.20 3.20 6.70 4.80 3.20
    BLT103-1-1/4 1-1/4 12 24 4.50 9.0 6.30 4.50 4.50 9.40 6.70 4.50
    BLT103-1-1/2 1-1/2 16 32 7.00 14.0 9.80 7.00 7.00 14.70 10.50 7.00
    BLT103-1-3/4 1-3/4 24 48 9.00 18.0 12.60 9.00 9.00 18.90 13.50 9.00
    BLT103-2 2 32 64 12.00 24.0 16.80 12.00 12.00 25.00 18.00 12.00
    Instruction Manual Download
    • Customize
      CustomizeWe offer full customization based on customer requirements, including markings, colors, logos, bolt coating processes, and appearance. We can also design drawings tailored to specific needs.
    • Service
      ServiceBoth metric and UNC threaded hoist rings are available in stock and can be shipped within 1–3 days. For special threaded hoist rings, delivery can be arranged within 3–15 days (contact our service team for bulk order confirmation).
    Want to learn more about our products?
    Email: info@mainlywell.com
    Tel.: +86-15122032926
    Get in Touch

    Always inspect the swivel hoist ring to ensure it is in good condition and that the threaded hole is clean and free of debris before use. During installation, use the proper tool to screw it in securely. Finally, make sure the hoist ring base is firmly tightened to the load surface, with no gaps or loose torque.

    In addition to black oxide, we also provide Dacromet coating as a standard option. Depending on your working environment, additional options such as chrome plating, galvanization, or zinc infiltration are available to enhance durability and corrosion resistance.

    Hoist rings must be inspected by a professional safety officer before and after each use, and at least once a year by qualified personnel. During the inspection, check for severe corrosion, cracks, fractures, or deformation in the screw and welded components. Confirm that all moving components (such as rotation and flip mechanisms) function smoothly and look for signs of heat damage or excessive wear. In case of any doubt about the safety condition of the hoist ring, stop using it immediately and report the issue to your supervisor.

    We do not recommend placing a washer between the hoist ring and the load. If it is unavoidable, please provide detailed load dimensions so our technical team can assess the load impact and recommend the safest lifting solution.
