BLT094 Rigging Hardware

Key Eye Point with Self Locking Plate

Key Eye Point (0.3-12t)
  • Key Eye Point (0.3-12t)
  • Key Eye Point (0.3-12t)
  • Key Eye Point (0.3-12t)
  • Key Eye Point (0.3-12t)
  • Key Eye Point (0.3-12t)
    • Request a Quote
    BLT094 Rigging Hardware

    Key Eye Point with Self Locking Plate
    • Working Load Limit
      Working Load Limit 0.3-12t
    • Rotation
      Rotation 360 degree
    • Material: High-strength chromium-molybdenum alloy steel
    • Attachment type: Screw-in
    • Rotation angle: 360°
    • Pivot angle: 0°
    • Surface treatment (rings): Powder-coated
    • Surface treatment (bolts): Black oxide finish
    • Working temperature range: -40℃~+200℃
    • Thread size: M8–M48
    • Bolt grade: 10.9
    • Custom thread: Metric/Unified National Coarse (UNC)/Unified National Fine (UNF)/pipe thread/lengthened/shortened
    • Rotates under load: No
    • Holding spring for suspension link: No
    • Working load limit: 0.3T-12T
    • Safety factor: 4:1
    • Standard: DIN EN 1677-1
    • Explosion protection: No
    • RAL color No.: Customizable
    • Identification label available: No
    Inspection and Standards
    • Passed 6g plug gauge inspection for compatibility with precision-threaded holes
    • Withstood 1.5x load fatigue testing (20,000 cycles) and 2.5x rated load testing for durability
    • Verified through magnetic particle inspection to confirm crack-free integrity
    • Manufactured according to EN1677-1 standards, with certified test reports available upon request
    Applications
    • Oil and gas: Suitable for lifting operations in tight spaces, such as installing and maintaining oil and gas extraction equipment

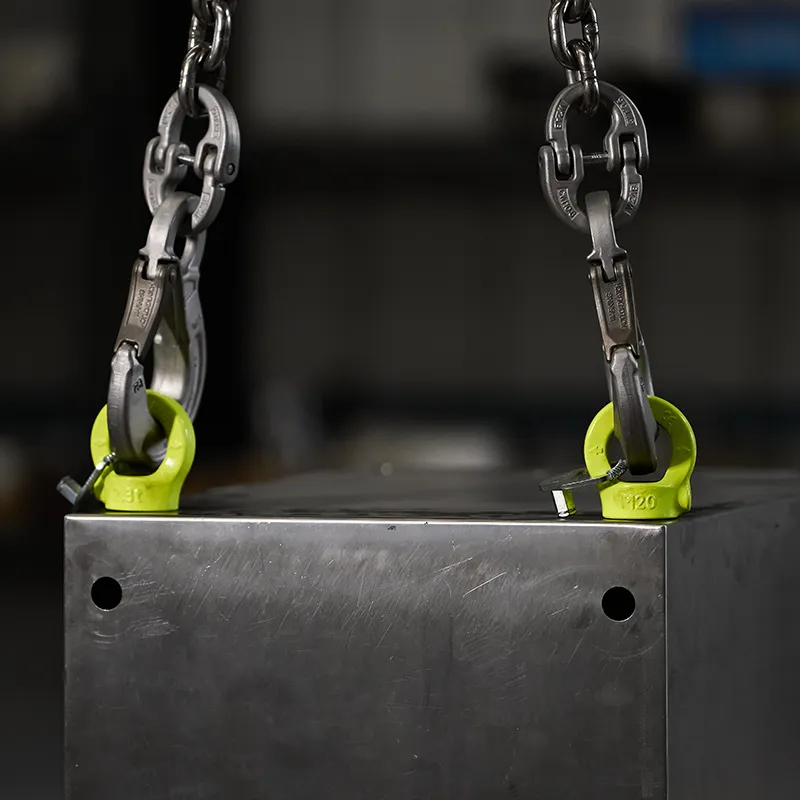

    • Logistics and transportation: Frequently used for lifting and handling bulky or irregularly shaped cargo, including containers and large bulk goods

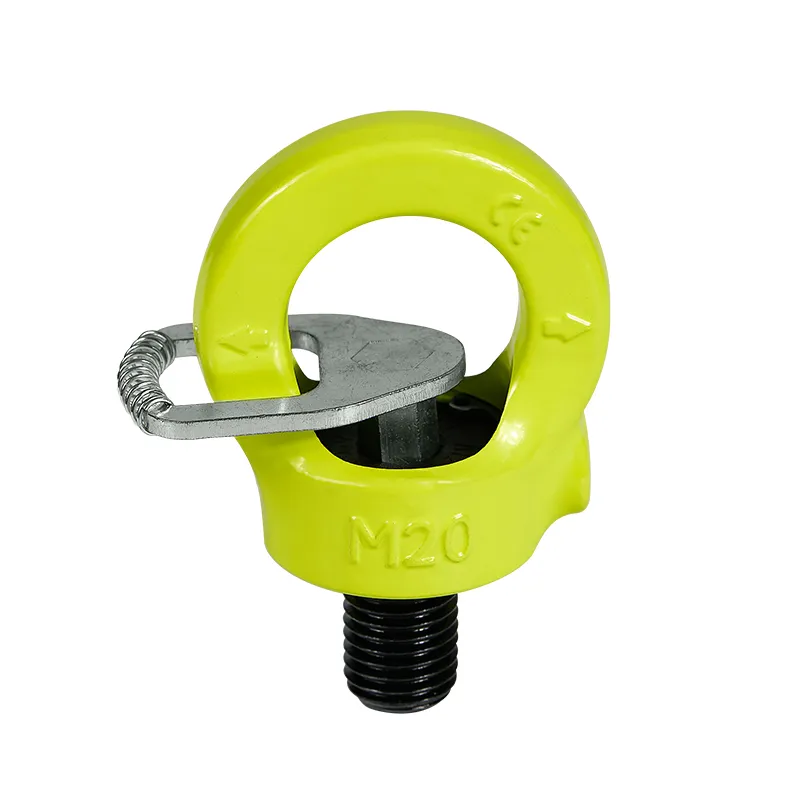

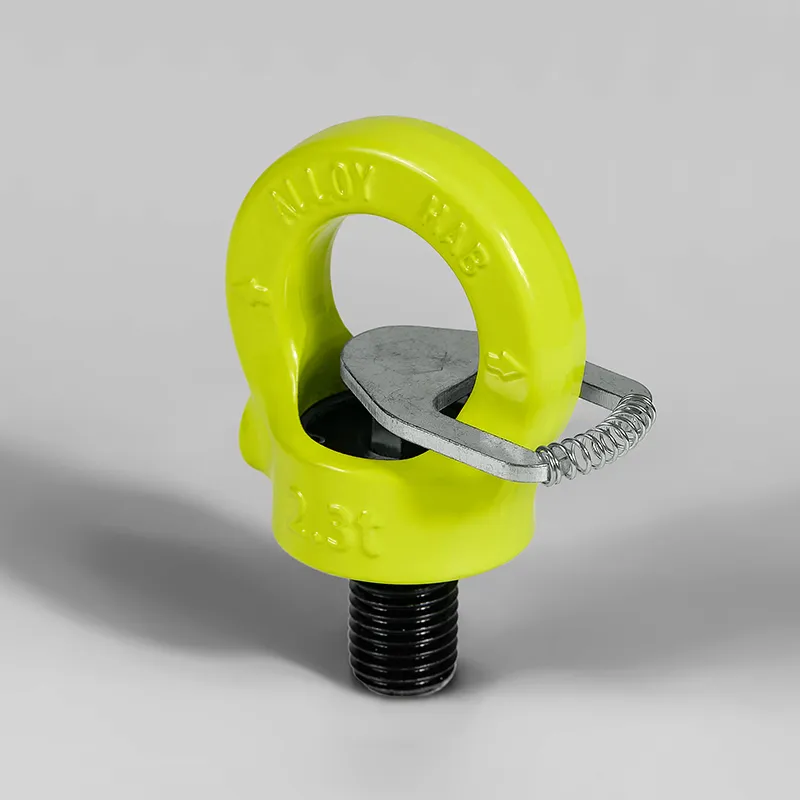

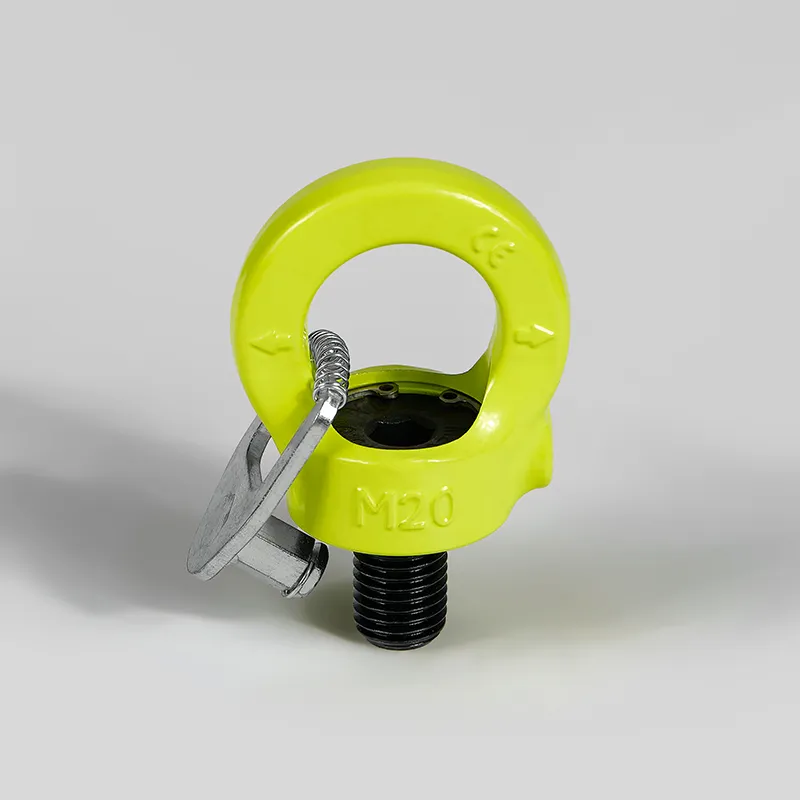

    The key eye point offers a working load limit of 0.3-12t and full 360-degree rotation. Its lightweight, compact design, combined with a self-locking plate that ensures quick, tool-free installation, makes it an ideal solution for efficient and secure lifting operations in limited spaces.
    Key Eye Point (0.3-12t)
    Key Features
    • Compact and lightweight design for installation in confined lifting environments

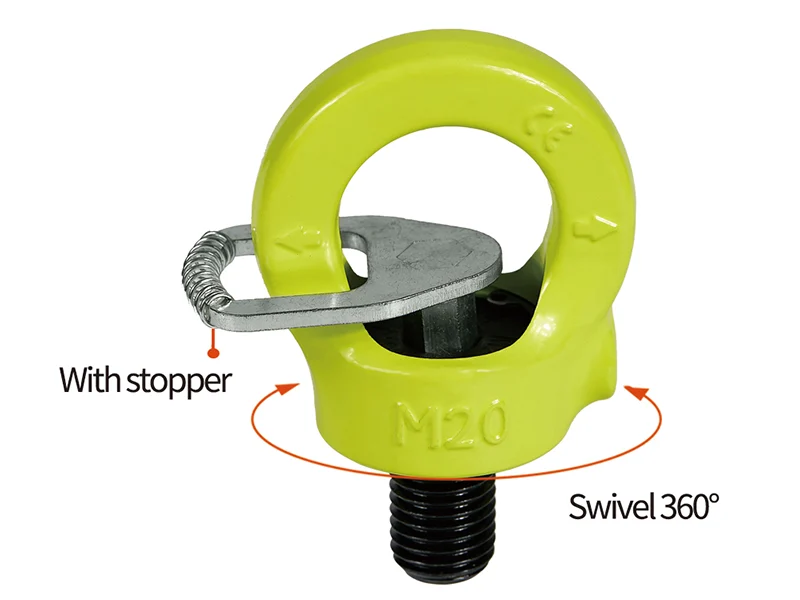

    • Enables full 360° rotation for precise load positioning

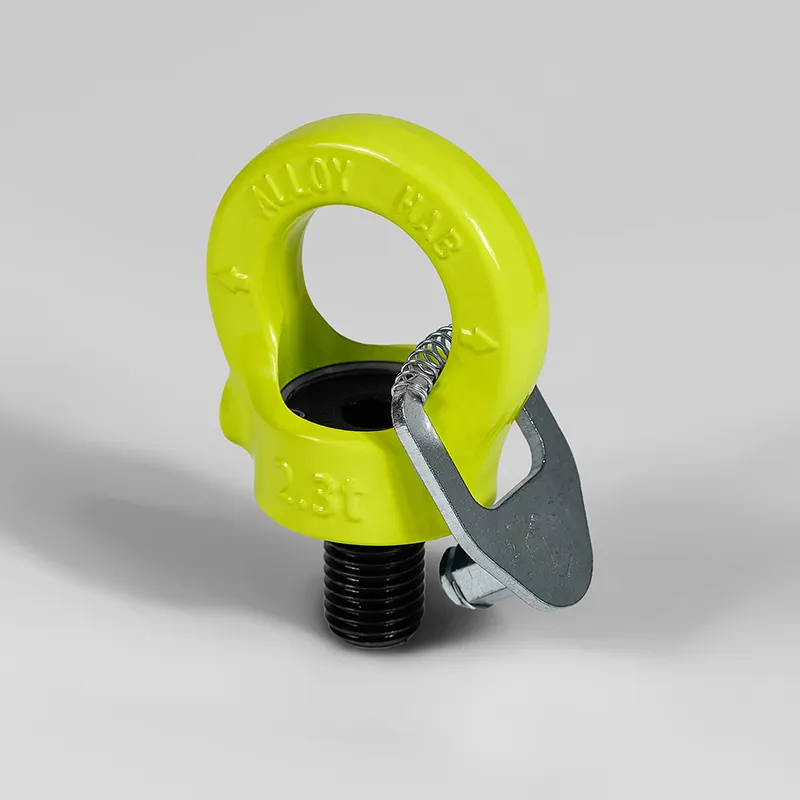

    • Equipped with a self-locking plate for quick, tool-free installation.
    • Available in M8-M48 and custom thread sizes (extended, shortened, coarse, fine, metric, or imperial)
    • Work load limited (WLL) of 0.3-12t, ensuring safe performance even at challenging angles (e.g., 90°)
    • 4:1 safety factor with 100% non-destructive testing for enhanced reliability
    • Load-bearing components feature batch numbers for easy traceability
    • Forged from high-strength chromium-molybdenum alloy steel, heat-treated (quenched and tempered) for superior strength and toughness
    • Epoxy resin electrostatic powder coating (ring) and black oxide treatment (bolt) for enhanced corrosion resistance
    Specifications

    (Available in Metric Thread and UNC Thread)

    • Key Eye Point (0.3-12t)
    • Key Eye Point (0.3-12t)

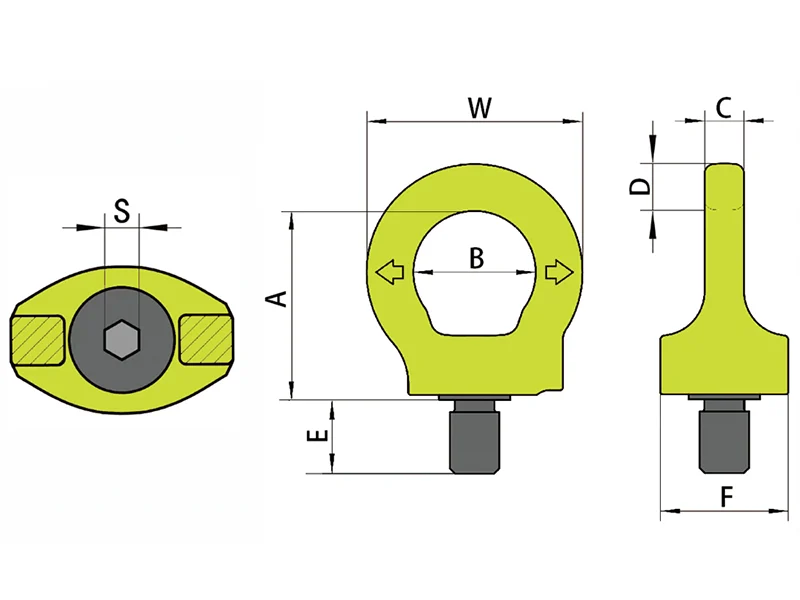

    Item No. Working Load Limit (t) Thread M Dimensions (mm) Torque (Nm) Weight (kg)
    E A B C D F W S
    BLT094-M8 0.30 8×1.25 12 40.0 25 8 9.5 26 44 6 10-40 0.15
    BLT094-M10 0.40 10×1.50 15 40.0 25 8 9.5 26 44 6 10-40 0.15
    BLT094-M12 0.75 12×1.75 18 47.0 30 10 11.0 32 52 8 15-40 0.20
    BLT094-M14 0.75 14×2.00 18 47.0 30 10 11.0 32 52 8 30-100 0.20
    BLT094-M16 1.50 16×2.00 24 54.0 35 14 13.0 39 61 10 45-130 0.35
    BLT094-M18 1.50 18X2.50 24 54.0 35 14 13.0 39 61 10 100-170 035
    BLT094-M20 2.30 20×2.50 30 63.0 40 16 15.0 47 70 12 100-170 0.60
    BLT094-M22 2.30 22×2.50 30 63.0 40 16 15.0 47 70 12 100-170 0.60
    BLT094-M24 3.20 24×3.00 36 73.0 48 19 18.0 55 84 14 190-280 1.00
    BLT094-M27 3.20 27x3.00 36 73.0 48 19 18.0 55 84 14 250-500 1.00
    BLT094-M30 4.50 30×3.50 45 91.5 60 24 22.5 67 105 17 270-600 2.00
    BLT094-M33 4.50 33×3.50 45 91.5 60 24 22.5 67 105 17 270-600 2.00
    BLT094-M36 7.00 36×4.00 54 114.0 72 29 27.0 85 126 22 270-600 3.00
    BLT094-M42 9.00 42×4.50 63 130.0 82 34 32.5 98 147 22 350-800 5.00
    BLT094-M48 12.00 48X5.00 72 151.0 96 38 36.0 114 168 27 350-800 7.50

    * Safety factor of 4:1;
    * Welding operations must be carried out by qualified welding personnel in accordance with EN287 or AWS specifications;

    Working Load Applications

    Lifting Method Working Load Applications Working Load Applications Working Load Applications Working Load Applications Working Load Applications Working Load Applications Working Load Applications Working Load Applications
    Number of Sling Legs 1 2 1 2 2 2 3-4 3-4
    Lifting Angle 0° 0 90° 90° 0-45° 45-60° Asymmetry 0-45° 45-60° Asymmetry
    Item No. Thread M Working Load Limit (t)
    BLT094-M8 8 1 2 0.30 0.6 0.42 0.30 0.30 0.63 0.45 0.30
    BLT094-M10 10 1 2 0.40 0.8 0.56 0.40 0.40 0.80 0.60 0.40
    BLT094-M12 12 2 4 0.75 1.5 1.00 0.75 0.75 1.50 1.10 0.75
    BLT094-M14 14 2 4 0.75 1.5 1.00 0.75 0.75 1.50 1.10 0.75
    BLT094-M16 16 4 8 1.50 3.0 2.10 1.50 1.50 3.10 2.20 1.50
    BLT094-M18 18 4 8 1.50 3.0 2.10 1.50 1.50 3.10 2.20 1.50
    BLT094-M20 20 6 12 2.30 4.6 3.20 2.30 2.30 4.80 3.40 2.30
    BLT094-M22 22 6 12 2.30 4.6 3.20 2.30 2.30 4.80 3.40 2.30
    BLT094-M24 24 8 16 3.20 6.4 4.50 3.20 3.20 6.70 4.80 3.20
    BLT094-M27 27 8 16 3.20 6.4 4.50 3.20 3.20 6.70 4.80 3.20
    BLT094-M30 30 12 24 4.50 9.0 6.30 4.50 4.50 9.40 6.70 4.50
    BLT094-M33 33 12 24 4.50 9.0 6.30 4.50 4.50 9.40 6.70 4.50
    BLT094-M36 36 16 32 7.00 14.0 9.80 7.00 7.00 14.70 10.50 7.00
    BLT094-M42 42 24 48 9.00 18.0 12.60 9.00 9.00 18.90 13.50 9.00
    BLT094-M48 48 32 64 12.00 24.0 16.80 12.00 12.00 25.00 18.00 12.00

    Item No. Working Load Limit (t) Thread Dimensions (mm) Torque (Nm) Weight (kg)
    M TPI E A B C D F W 5
    BLT094-3/8 0.40 3/8 16.0 15.0 40.0 25 8 9.5 26 44 6 10-40 0.15
    BLT094-1/2 0.75 1/2 13.0 18.0 47.0 30 10 11.0 32 52 8 15-40 0.20
    BLT094-5/8 1.50 5/8 11.0 24.0 54.0 35 14 13.0 39 61 10 45-130 0.35
    BLT094-3/4 2.30 3/4 10.0 30.0 63.0 40 16 15.0 47 70 12 45-130 0.60
    BLT094-7/8 2.30 7/8 9.0 30.0 63.0 40 16 15.0 47 70 12 100-170 0.60
    BLT094-1 3.20 1 8.0 36.0 73.0 48 19 18.0 55 84 14 190-280 1.00
    BLT094-1-1/4 4.50 1-1/4 7.0 45.0 91.5 60 24 22.5 67 105 17 270-600 2.00
    BLT094-1-1/2 7.00 1-1/2 6.0 54.0 114.0 72 29 27.0 85 126 22 270-600 3.00
    BLT094-1-3/4 9.00 1-3/4 5.0 63.0 130.0 82 34 32.5 98 147 22 350-800 5.00
    BLT094-2 12.00 2 4.5 72.0 151.0 96 38 36.0 114 168 27 350-800 7.50

    * Safety factor of 4:1;
    * The length and thread of bolts can be made according to requirements;

    Working Load Applications

    Lifting Method Working Load Applications Working Load Applications Working Load Applications Working Load Applications Working Load Applications Working Load Applications Working Load Applications Working Load Applications
    Number of Sling Legs 1 2 1 2 2 2 3-4 3-4
    Lifting Angle 0 0° 90° 90 0-45° 45-60° Asymmetry 0-45° 45-60° Asymmetry
    Item No. Thread M Working Load Limit (t)
    BLT094-3/8 3/8 1 2 0.40 0.8 0.56 0.40 0.40 0.8 0.6 0.40
    BLT094-1/2 1/2 2 4 0.75 1.5 1.00 0.75 0.75 1.5 1.1 0.75
    BLT094-5/8 5/8 4 8 1.50 3.0 2.10 1.50 1.50 3.1 2.2 1.50
    BLT094-3/4 3/4 6 12 2.30 4.6 3.20 2.30 2.30 4.8 3.4 2.30
    BLT094-7/8 7/8 6 12 2.30 4.6 3.20 2.30 2.30 4.8 3.4 2.30
    BLT094-1 1 8 16 3.20 6.4 4.50 3.20 3.20 6.7 4.8 3.20
    BLT094-1-1/4 1-1/4 12 24 4.50 9.0 6.30 4.50 4.50 9.4 6.7 4.50
    BLT094-1-1/2 1-1/2 16 32 7.00 14.0 9.80 7.00 7.00 14.7 10.5 7.00
    BLT094-1-3/4 1-3/4 24 48 9.00 18.0 12.60 9.00 9.00 18.9 13.5 9.00
    BLT094-2 2 32 64 12.00 24.0 16.80 12.00 12.00 25.0 18.0 12.00
    Instruction Manual Download
    • Customize
      CustomizeWe offer full customization based on customer requirements, including markings, colors, logos, bolt coating processes, and appearance. We can also design drawings tailored to specific needs.
    • Service
      ServiceBoth metric and UNC threaded hoist rings are available in stock and can be shipped within 1–3 days. For special threaded hoist rings, delivery can be arranged within 3–15 days (contact our service team for bulk order confirmation).
    Want to learn more about our products?
    Email: info@mainlywell.com
    Tel.: +86-15122032926
    Get in Touch

    Always inspect the swivel hoist ring to ensure it is in good condition and that the threaded hole is clean and free of debris before use. During installation, use the proper tool to screw it in securely. Finally, make sure the hoist ring base is firmly tightened to the load surface, with no gaps or loose torque.

    In addition to black oxide, we also provide Dacromet coating as a standard option. Depending on your working environment, additional options such as chrome plating, galvanization, or zinc infiltration are available to enhance durability and corrosion resistance.

    Hoist rings must be inspected by a professional safety officer before and after each use, and at least once a year by qualified personnel. During the inspection, check for severe corrosion, cracks, fractures, or deformation in the screw and welded components. Confirm that all moving components (such as rotation and flip mechanisms) function smoothly and look for signs of heat damage or excessive wear. In case of any doubt about the safety condition of the hoist ring, stop using it immediately and report the issue to your supervisor.

    We do not recommend placing a washer between the hoist ring and the load. If it is unavoidable, please provide detailed load dimensions so our technical team can assess the load impact and recommend the safest lifting solution.
