BLT081 Rigging Hardware

Side Load Lifting Point

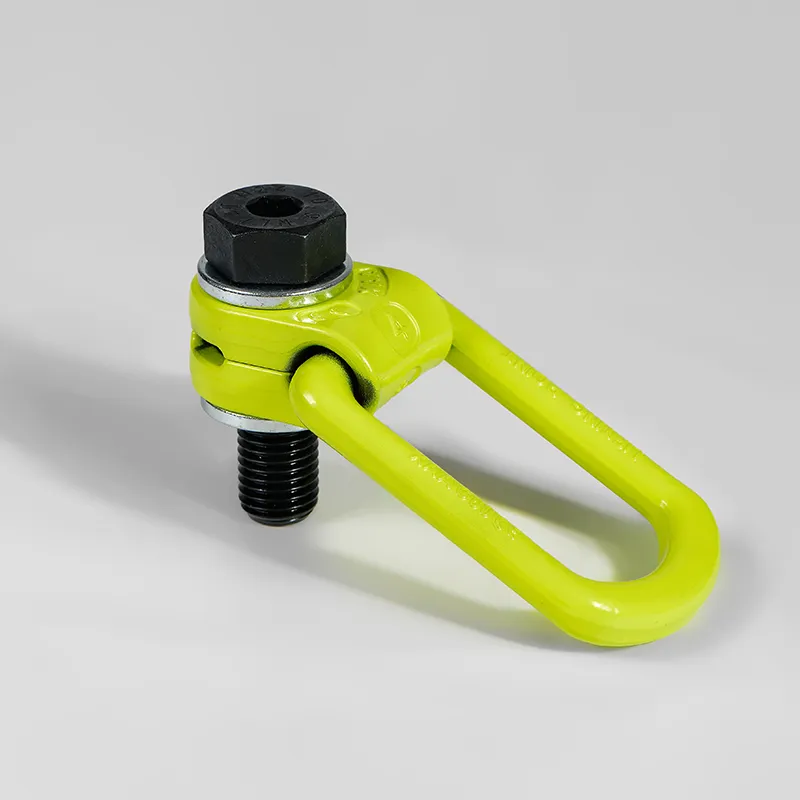

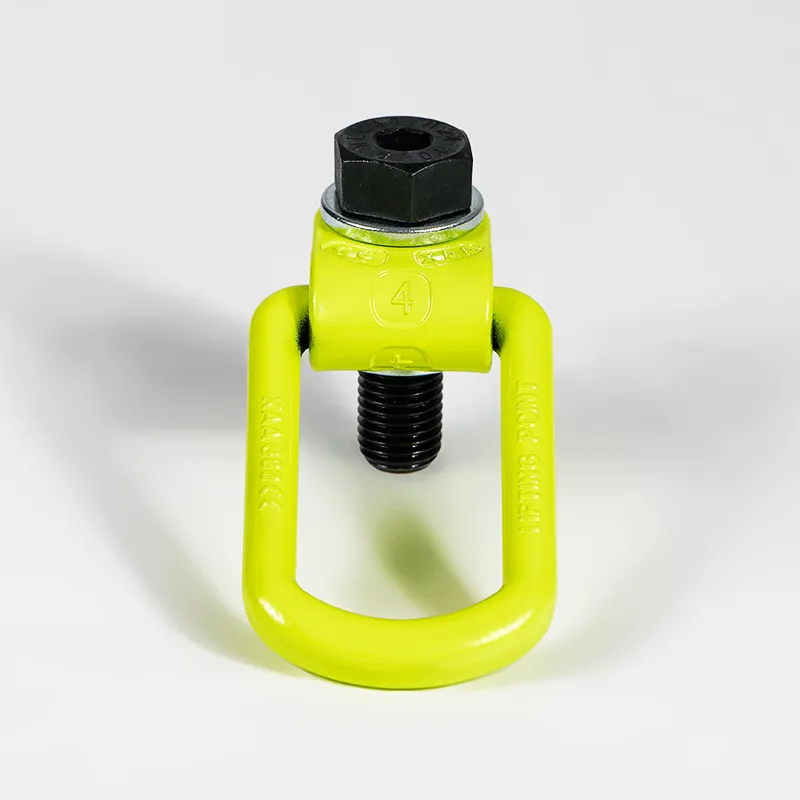

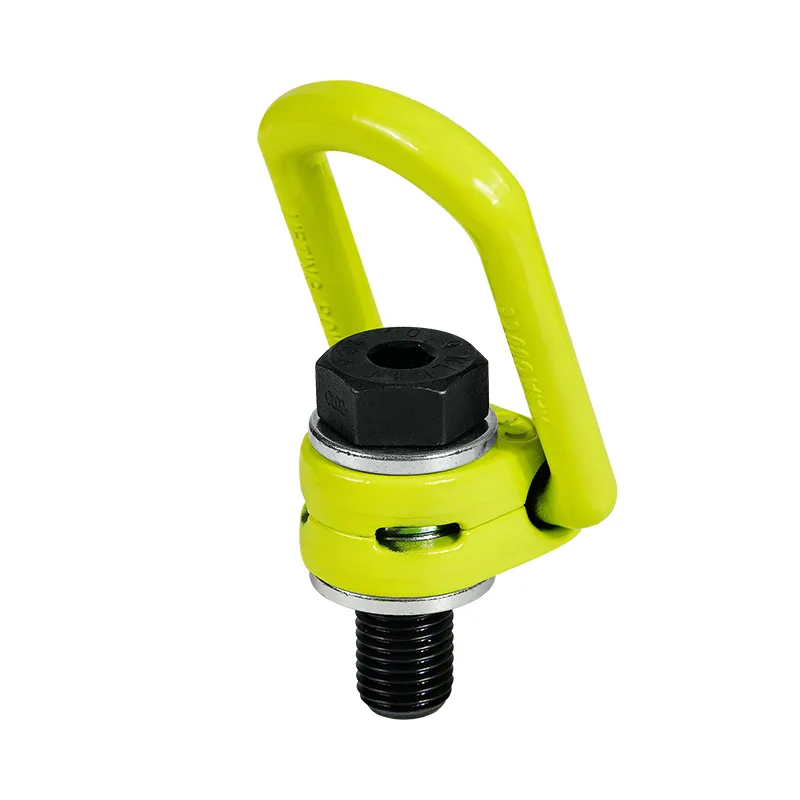

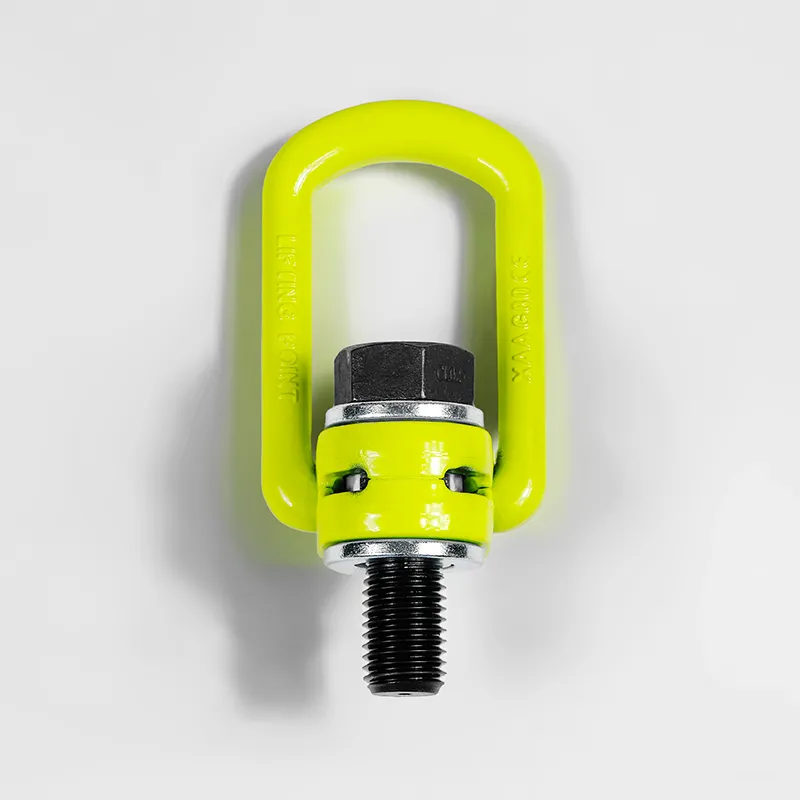

Side Load Lifting Point (0.3-22.5t)
  • Side Load Lifting Point (0.3-22.5t)
  • Side Load Lifting Point (0.3-22.5t)
  • Side Load Lifting Point (0.3-22.5t)
  • Side Load Lifting Point (0.3-22.5t)
  • Side Load Lifting Point (0.3-22.5t)
    • Request a Quote
    BLT081 Rigging Hardware

    Side Load Lifting Point
    • Working Load Limit
      Working Load Limit 0.3-22.5t
    • Rotation

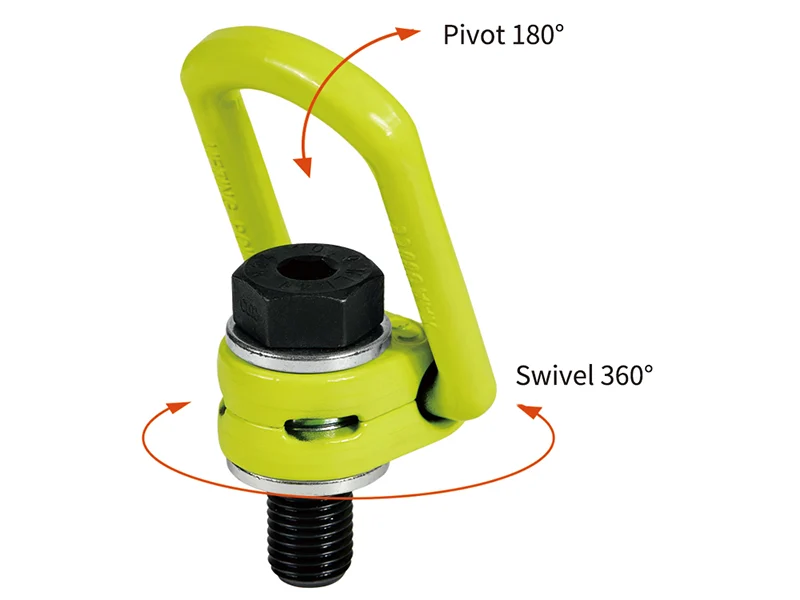

      Rotation 360 degree
    • Pivot
      Pivot 180 degree
    • Material: High-strength chromium-molybdenum alloy steel
    • Attachment type: Screw-in
    • Rotation angle: 360°
    • Pivot angle: 180°
    • Surface treatment (rings): Powder-coated
    • Surface treatment (bolts): Black oxide finish
    • Working temperature range: -40℃~+200℃
    • Thread size: M8–M64
    • Bolt grade: 10.9
    • Custom thread: Metric/Unified National Coarse (UNC)/Unified National Fine (UNF)/pipe thread/lengthened/shortened
    • Rotates under load: No
    • Holding spring for suspension link: Yes
    • Working load limit: 0.3T-22.5T
    • Safety factor: 4:1
    • Standard: DIN EN 1677-1
    • Explosion protection: No
    • RAL color No.: Customizable
    • Identification label available: No
    • Side Load Lifting Point (0.3-22.5t)
    • Side Load Lifting Point (0.3-22.5t)
    Applications

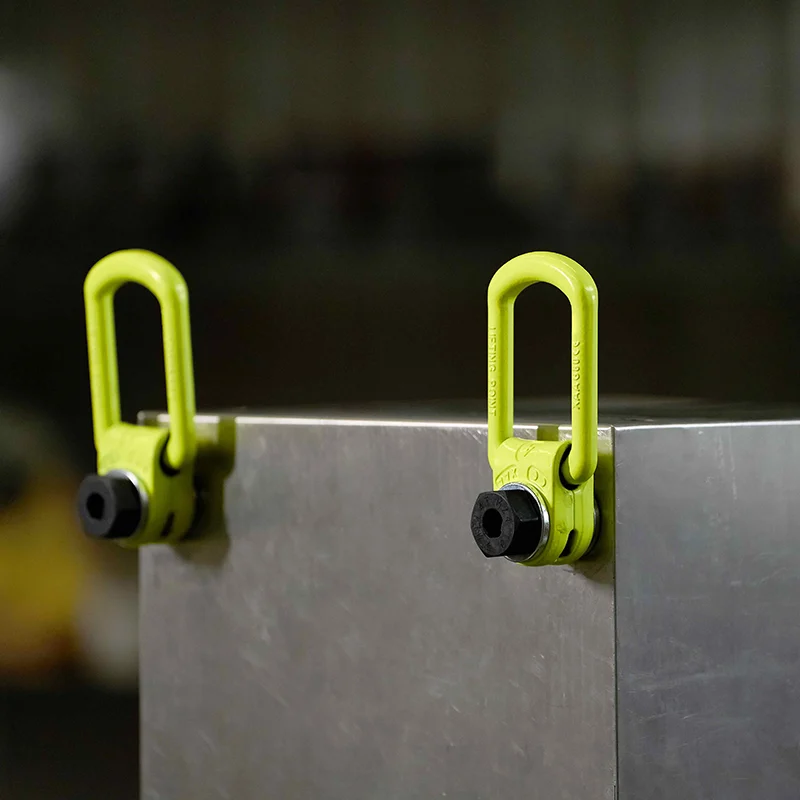

    • Industrial plants: Suitable for lifting and transporting molds, as well as installing various industrial production equipment

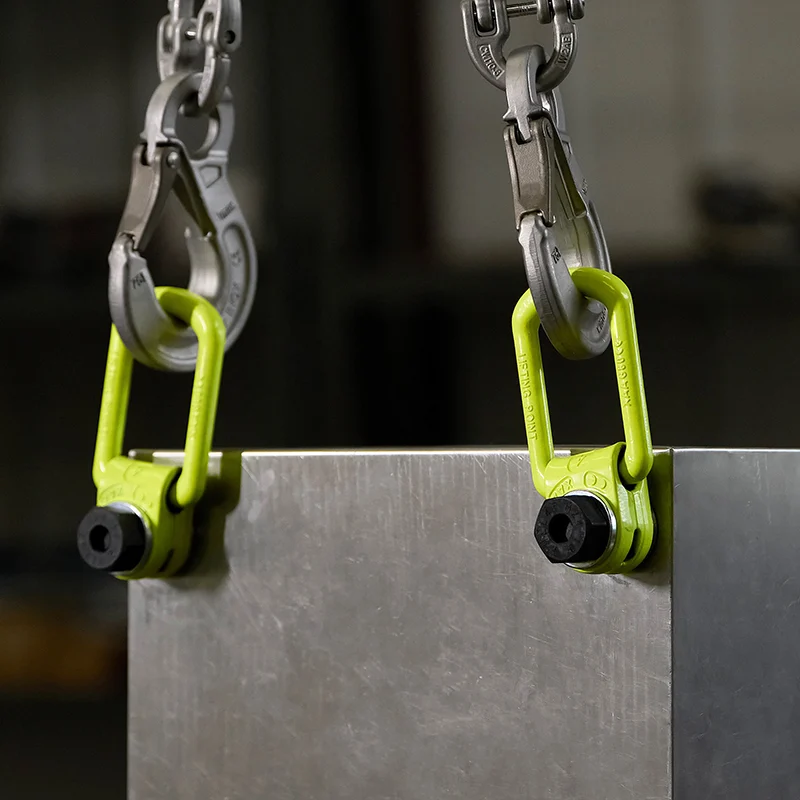

    • Transportation: Commonly used for lifting and securing industrial equipment and transporting containers

    The side load lifting point is designed to handle side load lifting operations with precision and safety. With a working load limit of 0.3 to 22.5t, it offers full 360° rotation and 180° pivoting to adapt seamlessly to complex lifting scenarios. This horizontal lifting point is engineered for versatile applications in oil and gas, industrial manufacturing, and transportation sectors.

    Inspection and Standards
    • Passed 6g plug gauge inspection for compatibility with precision-threaded holes
    • Endured 1.5x load fatigue testing (20,000 cycles) and 2.5x rated load testing
    • Magnetic particle inspection ensures crack-free integrity
    • Complies with EN1677-1 production standards, with certified test reports available upon request
    Side Load Lifting Point (0.3-22.5t)
    Key Features
    • Designed for side load lifting applications, the ring features an internal positioning snap ring mechanism and a bushing on the bolt section to securely lock the ring in place, preventing unnecessary movement or collisions during non-operational periods.
    • Equipped with a dual hexagon design on the bolt top for easy and efficient installation
    • Capable of 360° rotation and 180° pivoting, enabling versatility for complex lifting tasks
    • Available in M8-M64, with a split design for the ring and bolt to accommodate custom thread sizes (e.g., lengthened, shortened, coarse, fine, metric, or UNC threads)
    • Working load limit (WLL) of 0.3-22.5t, with a 4:1 safety factor. All products undergo 100% non-destructive testing.
    • Each load-bearing component is stamped with a production batch number for traceability.

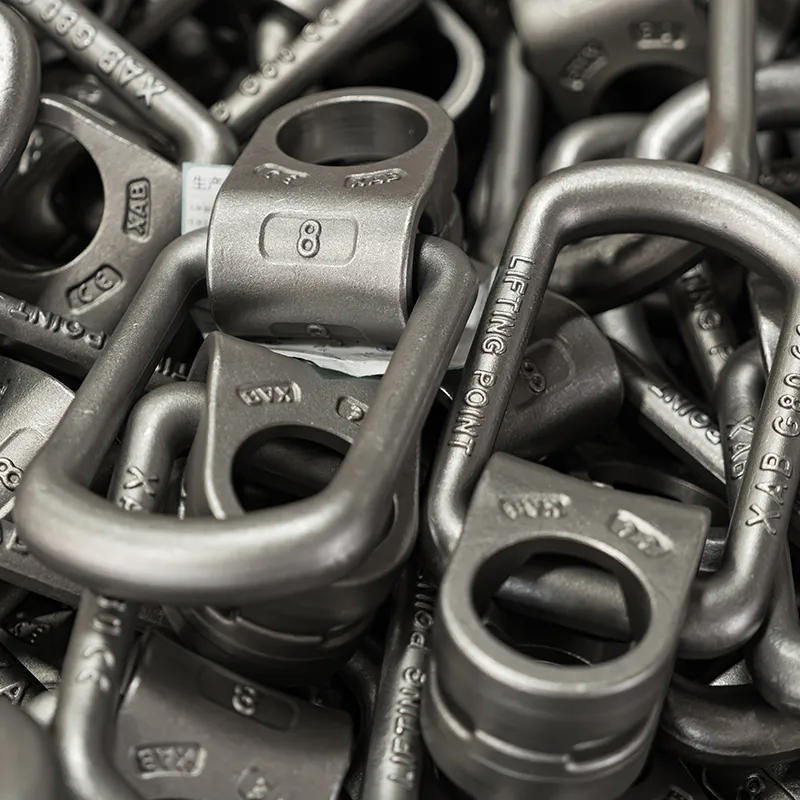

    • Forged from high-strength chromium-molybdenum alloy steel, heat-treated (quenched and tempered) for superior durability and toughness
    • Epoxy resin electrostatic powder coating for the ring and black oxide treatment for the bolt ensures resistance against wear and corrosion
    Specifications

    (Available in Metric Thread and UNC Thread)

    • Side Load Lifting Point (0.3-22.5t)
    • Side Load Lifting Point (0.3-22.5t)

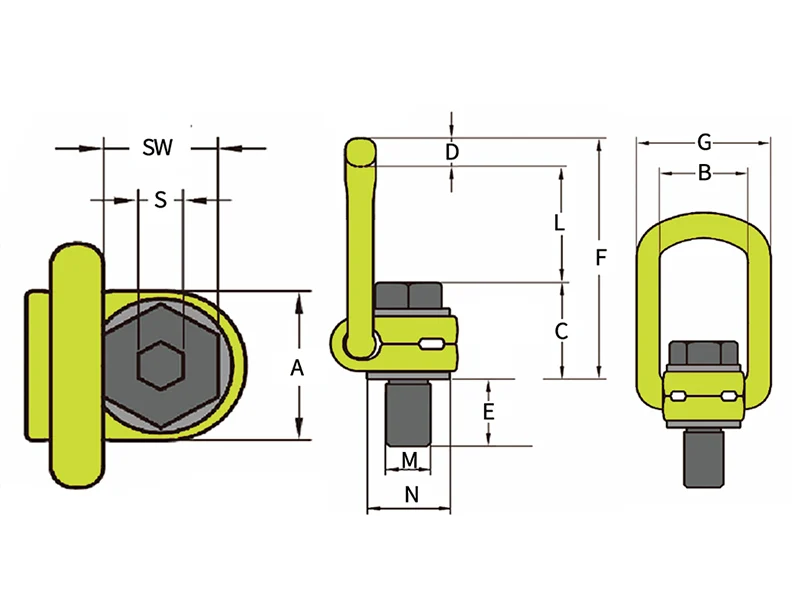

    Item No. Working Load Limit (t) Thread M Dimensions (mm) Torque (Nm) Weight (kg)
    E A B C D F G L N s SW
    BLT081-M8 0.30 8×1.25 11 34 37 42 14.0 98.5 57 42.5 31.0 6 13 10-40 0.5
    BLT081-M10 0.63 10×1.50 16 34 37 44 14.0 98.5 57 40.5 31.0 6 16 10-40 0.5
    BLT081-M12 1.00 12×1.75 18 34 37 45 14.0 98.5 57 39.5 31.0 8 18 15-40 0.5
    BLT081-M14 1.20 14×2.00 21 34 37 48 14.0 98.5 57 36.5 31.0 10 24 30-100 0.5
    BLT081-M16 1.50 16×2.00 24 34 37 48 14.0 98.5 57 36.5 31.0 10 24 45-130 0.5
    BLT081-M18 2.00 18×2.50 26 50 54 58 16.5 143.0 82 68.5 45.0 12 30 100-170 1.5
    BLT081-M20 2.50 20×2.50 30 50 54 58 16.5 143.0 82 68.5 45.0 12 30 100-170 1.5
    BLT081-M22 3.00 22×2.50 30 50 54 61 16.5 143.0 82 65.5 45.0 14 36 100-170 1.5
    BLT081-M24 4.00 24×3.00 36 50 54 61 16.5 143.0 82 65.5 45.0 14 36 190-280 1.5
    BLT081-M27 4.00 27×3.00 38 60 65 82 22.0 170.0 99 66.0 59.0 17 46 250-500 3.0
    BLT081-M30 5.00 30×3.50 48 60 65 82 22.0 170.0 99 66.0 59.0 17 46 270-600 3.5
    BLT081-M33 6.00 33×3.50 54 60 65 85 22.0 170.0 99 63.0 59.5 22 55 270-600 3.5
    BLT081-M36S 7.00 36×4.00 54 60 65 85 22.0 170.0 99 63.0 59.5 22 55 270-600 3.5
    BLT081-M36B 8.00 36×4.00 62 77 85 104 27.0 226.5 123 95.5 69.0 22 55 270-600 6.0
    BLT081-M39 8.00 39×4.00 62 77 85 104 27.0 226.5 123 95.5 69.0 22 55 350-800 6.0
    BLT081-M42S 10.00 42×4.50 72 77 85 106 27.0 226.5 123 93.5 69.0 22 65 350-800 6.5
    BLT081-M42B 15.00 42×4.50 63 95 104 117 36.0 257.5 158 104.5 98.0 22 65 350-800 11.0
    BLT081-M45 15.00 45×4.50 63 95 104 117 36.0 257.5 158 104.5 98.0 22 65 350-800 11.0
    BLT081-M48 20.00 48×5.00 72 95 104 120 36.0 257.5 158 101.5 98.0 27 75 350-800 12.0
    BLT081-M52 20.00 52×5.00 72 95 104 117 36.0 257.5 158 104.5 98.0 27 75 350-900 12.0
    BLT081-M56 22.00 56×5.50 84 95 104 117 36.0 257.5 158 104.5 98.0 27 85 350-900 15.0
    BLT081-M64 22.50 64×6.00 100 114 104 138 36.0 266.0 158 92.0 109.0 32 95 500-1000 16.3

    * Safety factor of 4:1;
    * The length and thread of bolts can be made according to requirements;
    * 'B' represents the large structure, 'S' represents the small structure;

    Working Load Applications

    Lifting Method Working Load Applications Working Load Applications Working Load Applications Working Load Applications Working Load Applications Working Load Applications Working Load Applications Working Load Applications
    Number of Sling Legs 1 2 1 2 2 2 3-4 3-4
    Lifting Angle 0° 0° 90° 90° 0-45° 45-60° Asymmetry 0-45° 45-60° Asymmetry
    Item No. Thread M Working Load Limit (t)
    BLT081-M8 8 0.30 0.60 0.30 0.60 0.42 0.30 0.30 0.63 0.45 0.30
    BLT081-M10 10 0.63 1.26 0.63 1.26 0.88 0.63 0.63 1.32 0.95 0.63
    BLT081-M12 12 1.00 2.00 1.00 2.00 1.40 1.00 1.00 2.10 1.50 1.00
    BLT081-M14 14 1.20 2.40 1.20 2.40 1.70 1.20 1.20 2.50 1.80 1.20
    BLT081-M16 16 1.50 3.00 1.50 3.00 2.10 1.50 1.50 3.10 2.20 1.50
    BLT081-M18 18 2.00 4.00 2.00 4.00 2.80 2.00 2.00 4.20 3.00 2.00
    BLT081-M20 20 2.50 5.00 2.50 5.00 3.50 2.50 2.50 5.20 3.70 2.50
    BLT081-M22 22 3.00 6.00 3.00 6.00 4.20 3.00 3.00 6.30 4.50 3.00
    BLT081-M24 24 4.00 8.00 4.00 8.00 5.60 4.00 4.00 8.40 6.00 4.00
    BLT081-M27 27 4.00 8.00 4.00 8.00 5.60 4.00 4.00 8.40 6.00 4.00
    BLT081-M30 30 5.00 10.00 5.00 10.00 7.00 5.00 5.00 10.50 7.50 5.00
    BLT081-M33 33 6.00 12.00 6.00 12.00 8.50 6.00 6.00 12.70 9.00 6.00
    BLT081-M36S 36 7.00 14.00 7.00 14.00 9.80 7.00 7.00 14.70 10.50 7.00
    BLT081-M36B 36 8.00 16.00 8.00 16.00 11.20 8.00 8.00 16.80 12.00 8.00
    BLT081-M39 39 8.00 16.00 8.00 16.00 11.20 8.00 8.00 16.80 12.00 8.00
    BLT081-M42S 42 10.00 20.00 10.00 20.00 14.00 10.00 10.00 21.00 15.00 10.00
    BLT081-M42B 42 15.00 30.00 15.00 30.00 21.00 15.00 15.00 31.50 22.50 15.00
    BLT081-M45 45 15.00 30.00 15.00 30.00 21.00 15.00 15.00 31.50 22.50 15.00
    BLT081-M48 48 20.00 40.00 20.00 40.00 28.00 20.00 20.00 42.00 30.00 20.00
    BLT081-M52 52 20.00 40.00 20.00 40.00 28.00 20.00 20.00 42.00 30.00 20.00
    BLT081-M56 56 22.00 44.00 22.00 44.00 30.80 22.00 22.00 46.20 33.00 22.00
    BLT081-M64 64 22.50 45.00 22.50 45.00 31.50 22.50 22.50 47.25 33.75 22.50

    Item No. Working Load Limit (t) Thread M Dimensions (mm) Torque (Nm) Weight (kg)
    M TPI E A B C D F G L N S SW
    BLT081-3/8 0.63 3/8 16.0 16 34 37 43 14.0 98.5 57 41.5 31.0 6 16 10-40 0.5
    BLT081-1/2 1.00 1/2 13.0 21 34 37 45 14.0 98.5 57 39.5 31.0 8 18 15-40 0.5
    BLT081-5/8 1.50 5/8 11.0 24 34 37 48 14.0 98.5 57 36.5 31.0 10 24 45-130 0.5
    BLT081-3/4 2.50 3/4 10.0 26 50 54 58 16.5 143.0 82 68.5 45.0 12 30 45-130 1.5
    BLT081-7/8 2.50 7/8 9.0 30 50 54 61 16.5 143.0 82 65.5 45.0 14 36 100-170 1.5
    BLT081-1 4.00 1 8.0 36 50 54 61 16.5 143.0 82 65.5 45.0 14 36 190-280 1.5
    BLT081-1-1/4 5.00 1-1/4 7.0 48 60 65 80 22.0 174.0 99 72.0 59.5 17 46 270-600 3.5
    BLT081-1-1/2 8.00 1-1/2 6.0 62 77 85 104 27.0 226.5 123 95.5 69.0 22 55 270-600 6.0
    BLT081-1-3/4 15.00 1-3/4 5.0 63 95 104 116 36.0 257.5 158 105.5 98.0 22 65 350-800 11.0
    BLT081-2 20.00 2 4.5 72 95 104 112 36.0 257.5 158 109.5 98.0 27 75 350-800 12.0

    * Safety factor of 4:1;
    * The length and thread of bolts can be made according to requirements;

    Working Load Applications

    Lifting Method Working Load Applications Working Load Applications Working Load Applications Working Load Applications Working Load Applications Working Load Applications Working Load Applications Working Load Applications
    Number of Sling Legs 1 2 1 2 2 2 3-4 3-4
    Lifting Angle 0° 0° 90° 90° 0-45° 45-60° Asymmetry 0-45° 45-60° Asymmetry
    Item No. Thread M Working Load Limit (t)
    BLT081-3/8 3/8 0.63 1.26 0.63 1.26 0.88 0.63 0.63 1.32 0.95 0.63
    BLT081-1/2 1/2 1.00 2.00 1.00 2.00 1.40 1.00 1.00 2.10 1.50 1.00
    BLT081-5/8 5/8 1.50 3.00 1.50 3.00 2.10 1.50 1.50 3.10 2.20 1.50
    BLT081-3/4 3/4 2.50 5.00 2.50 5.00 3.50 2.50 2.50 5.20 3.70 2.50
    BLT081-7/8 7/8 2.50 5.00 2.50 5.00 3.50 2.50 2.50 5.20 3.70 2.50
    BLT081-1 1 4.00 8.00 4.00 8.00 5.60 4.00 4.00 8.40 6.00 4.00
    BLT081-1-1/4 1-1/4 5.00 10.00 5.00 10.00 7.00 5.00 5.00 10.50 7.50 5.00
    BLT081-1-1/2 1-1/2 8.00 16.00 8.00 16.00 11.20 8.00 8.00 16.80 12.00 8.00
    BLT081-1-3/4 1-3/4 15.00 30.00 15.00 30.00 21.00 15.00 15.00 31.50 22.50 15.00
    BLT081-2 2 20.00 40.00 20.00 40.00 28.00 20.00 20.00 42.00 30.00 20.00
    Instruction Manual Download
    • Customize
      CustomizeWe offer full customization based on customer requirements, including markings, colors, logos, bolt coating processes, and appearance. We can also design drawings tailored to specific needs.
    • Service
      ServiceBoth metric and UNC threaded hoist rings are available in stock and can be shipped within 1–3 days. For special threaded hoist rings, delivery can be arranged within 3–15 days (contact our service team for bulk order confirmation).
    Want to learn more about our products?
    Email: info@mainlywell.com
    Tel.: +86-15122032926
    Get in Touch

    Always inspect the swivel hoist ring to ensure it is in good condition and that the threaded hole is clean and free of debris before use. During installation, use the proper tool to screw it in securely. Finally, make sure the hoist ring base is firmly tightened to the load surface, with no gaps or loose torque.

    In addition to black oxide, we also provide Dacromet coating as a standard option. Depending on your working environment, additional options such as chrome plating, galvanization, or zinc infiltration are available to enhance durability and corrosion resistance.

    Hoist rings must be inspected by a professional safety officer before and after each use, and at least once a year by qualified personnel. During the inspection, check for severe corrosion, cracks, fractures, or deformation in the screw and welded components. Confirm that all moving components (such as rotation and flip mechanisms) function smoothly and look for signs of heat damage or excessive wear. In case of any doubt about the safety condition of the hoist ring, stop using it immediately and report the issue to your supervisor.

    We do not recommend placing a washer between the hoist ring and the load. If it is unavoidable, please provide detailed load dimensions so our technical team can assess the load impact and recommend the safest lifting solution.
